Knipex 9R 400 022 22 Pc Punch and Chisel Set

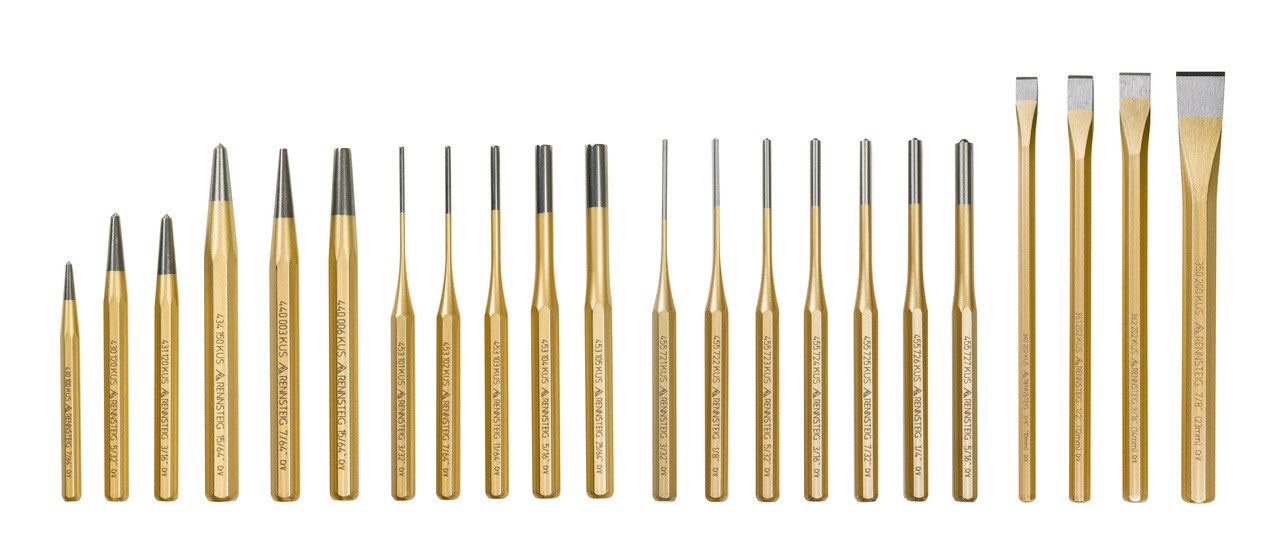

Where precision meets durability with every strike, the 22-Piece punch and chisel set is built to handle challenging tasks. This set includes 5 pin punches, two taper punches, four center punches, four cold chisels, and 7 roll pin punches. Perfect set for any demanding job, these tools ensure reliable and quality performance. RENNSTEIG is a member of the KNIPEX Group that specializes in the design and manufacturing of high quality tools

Features

• The octagonal shape is easier to grip when striking with a hammer and also prevents the tool from rolling away when placed on a surface
• The material core design prevents mushrooming of the striking head
• Tools are tempered to a hardness of 54 to 58 HRC - not just at the tip but throughout the entire length of the tool
• Compiles with DIN 7255 standard
• Pin Punches - 9R 453 101 KUS (3/32" 6"), 9R 453 102 KUS (7/64" x 6"), 9R 453 103 KUS (11/64" x 6"), 9R 453 104 KUS (5/16" x 6") and 9R 453 105 KUS (25/64" x 6")
• Pin punches are used to install and drive pins out of holes; All edges are rounded to prevent damage to the workpiece
• Taper Punch - 9R 440 003 KUS (7/64" x 4 3/4") and 9R 440 006 KUS (15/64" x 4 3/4")
• Taper punch helps align holes in parts for easier alignment of bolts; A taper punch can be used to loosen rusted or corroded parts
• Center Punches - 9R 430 100 KUS (7/64" x 4"), 9R 430 120 KUS (5/32" x4 3/4"), 9R 431 120 KUS(3 /16" x 4 3/4") and 9R 434 150 KUS (15/64" x 6")
• For exact marking of a drill point and guidance of the drill bit; Center punches are used to create permanent marks or locations when disassembling engine parts
• Cold Chisels - 9R 350 200 KUS (7/8" x 8"), 9R 360 202 KUS ( 3/8" x 8"), 9R 361 202 KUS (1/2" x 8") and 9R 362 202 KUS (9/16" x 8)
• Cold chisel features a hand ground sharpened edge designed to cut and shear cold metal; Striking head is turned and chamfered
• Roll Pin Punches - 9R 455 721 KUS (3/32" x 6"), 9R 455 722 KUS (1/8" x 6"), 9R 455 723 KUS (5/32" x 6"), 9R 455 724 KUS (3/16" x6"), 9R 455 725 KUS (7/32" x 6"), 9R 455 726 KUS (1/4" x 6") and 9R 455 727 KUS (5/16" x 6")
• Used primarily to remove roll pins; The center of the tip of the punch has a rounded center section that fits inside the hole created by the roll pin. This helps prevent damaging the roll pin and easy removal of the pin

Specifications

• Manufacturer Part Number: 9R 400 022
• Material Type: Chrome Vanadium Steel
• Other Surface Finish: Polished tips
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Gold
• Tool Nominal Length: "
• Tool Length: 10.8"
• Tool Width: 3.35"
• Tool Height: 3"
• Tool Weight: 2057 g (4.535 lb)
• Includes: 9R 453 101 KUS | 9R 453 102 KUS | 9R 453 103 KUS | 9R 453 104 KUS | 9R 453 105 KUS | 9R 440 003 KUS | 9R 440 006 KUS | 9R 434 150 KUS | 9R 431 120 KUS | 9R 430 120 KUS | 9R 430 100 KUS | 9R 350 200 KUS | 9R 360 202 KUS | 9R 361 202 KUS | 9R 362 202 KUS | 9R 455 721 KUS | 9R 455 722 KUS | 9R 455 723 KUS | 9R 455 724 KUS | 9R 455 725 KUS | 9R 455 726 KUS | 9R 455 727 KUS
• Tip Width: 7/8" (9R 350 200 KUS) | 3/8" (9R 360 202 KUS) | 1/2" (9R 361 202 KUS) | 9/16" (9R 362 202 KUS)
• Tip Diameter: Various
• Tip Style: Flat|Point|Ball
• UPC: 843221031206
