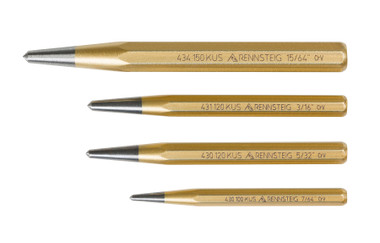

Knipex 9R 430 004 4 Pc Center Punch Set

Where precision meets durability with every strike, the 4 piece center punch set is built to handle challenging tasks. This set includes center punches with the following diameter: 7/64”, 5/32”, 3/16” and 15/64”

Features

• For exact marking of a drill point and guidance of the drill bit
• Center punches are used to create permanent marks or locations when disassembling engine parts
• The octagonal shape is easier to grip when striking with a hammer and also prevents the tool from rolling away when placed on a surface
• The tip is ground and polished
• The material core design prevents mushrooming of the striking head
• Tools are tempered to a hardness of 54 to 58 HRC - not just at the tip but throughout the entire length of the tool
• Forged from top quality hardened chrome vanadium steel
• Compiles with DIN 7255 standard

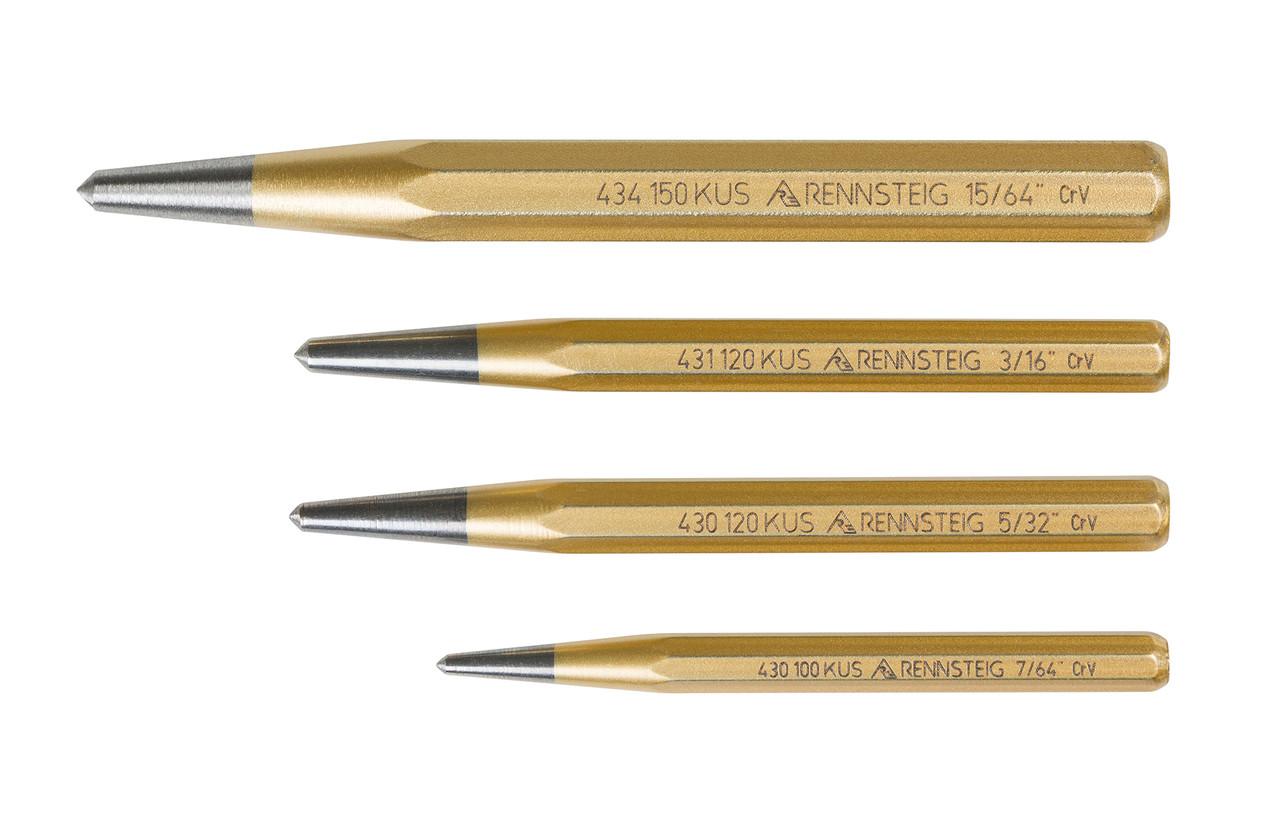

• Set includes four (4) center punches: 9R 430 100 KUS (7/64" x 4"), 9R 430 120 KUS (5/32" x 4 3/4"), 9R 431 120 KUS (3/16" x 4 3/4"), and 9R 434 150 KUS (15/64" x 6")
• RENNSTEIG is a member of the KNIPEX Group that specializes in the design and manufacturing of high quality tools

Specifications

• Manufacturer Part Number: 9R 430 004
• Material Type: Chrome Vanadium Steel
• Other Surface Finish: Polished tips
• 1000V Insulated: No
• Tethered Enabled: false
• Color: Gold
• Tool Nominal Length: "
• Tool Length: 8.75"
• Tool Width: 1.13"
• Tool Height: 1.13"
• Tool Weight: 345 g (0.76 lb)
• Includes: 9R 430 100 KUS | 9R 430 120 KUS | 9R 431 120 KUS | 9R 434 150 KUS
• Tip Diameter: 7/64" (9R 430 100 KUS) | 5/32" (9R 430 120 KUS) | 3/16" (9R 431 120 KUS) | 15/64" (9R 434 150 KUS)
• Tip Style: Point
• UPC: 843221030513
