Knipex 97 49 71 Crimping die for MC4® and MC4® Evo 2 for 4, 6 and 10 mm² (12, 10 and 8 AWG)

Your Price:
$253.99
SKU:
KN97 49 71

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

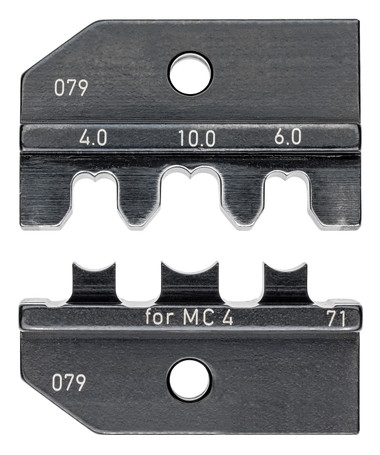

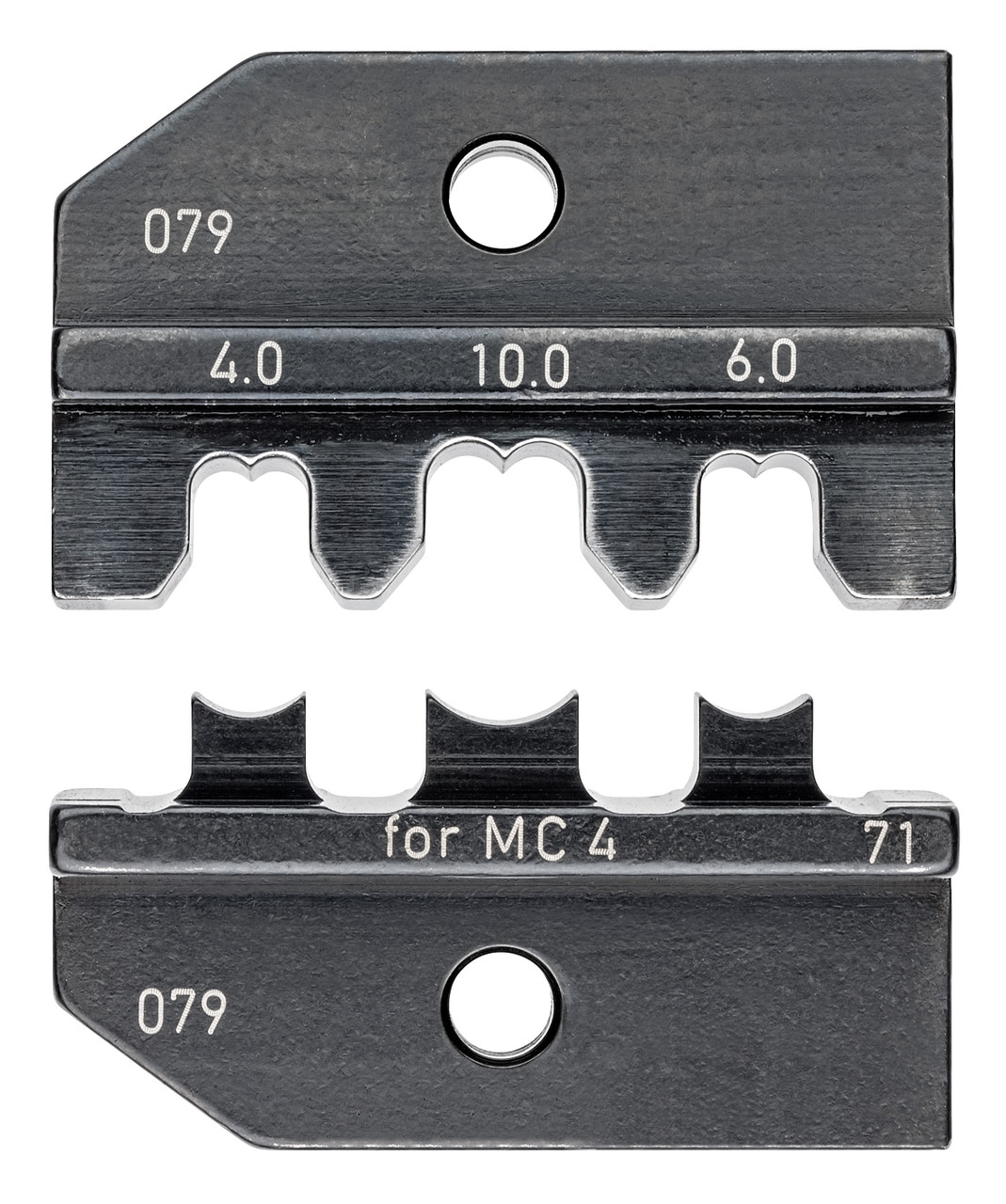

Crimping die for MC4® and MC4® EVO 2

Features

  • Capacity - 4.0, 6.0 and 10.0 mm² (12, 10 and 8 AWG)
  • The optional locator 97 49 71 1 automatically aligns the contacts precisely
  • With high-precision crimp geometry for the best crimp results

Specifications

  • Manufacturer Part Number: 97 49 71
  • Tethered Enabled: false
  • Tool Nominal Length: "
  • Tool Length: 2.3"
  • Tool Width: 1.75"
  • Tool Height: 0.7"
  • Tool Weight: 43 g (0.095 lb)
  • Crimping Profile: F crimp
  • Terminal Type: MC4|MC4 EVO2
  • Crimping Capacity: Capacity - 4.0, 6.0 and 10.0 mm² (12, 10 and 8 AWG)
  • Crimping Capacity - AWG: 12, 10 and 8
  • Crimping Capacity - mm2: 4.0, 6.0 and 10.0
  • For Use With: 97 43 66 EVO
  • UPC: 843221031855
