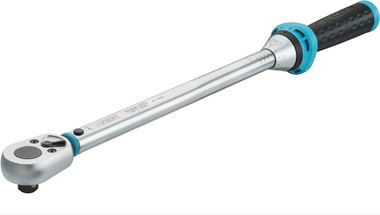

Hazet 5122-3CT Torque wrench with reversible ratchet 1/2" 40-200 Nm

Hazet 5122-3CT Torque wrench with reversible ratchet 1/2" drive, 40-200 Nm

User-friendly, 32-tooth reversible ratchet
Accuracy 3% of scale value (in direction of actuation)
Audible and tactile indication when torque value is reached
Designed for rough workshop use
Wide range of applications for controlled screw tightening in tire service, bicycle repair, passenger car and commercial vehicle applications as well as various applications in trade and industry.
Optimized sealing ring to protect against debris
Ratchet is easily rebuildable
Handle with better grip for easier power transmission
Adjustment aid with detent points ensures safe and fast adjustment of the desired torque value by turning the handle
Safe locking of the setting values by latching function on the rotary assembly
Rotary assembly in triangular form prevents uncontrolled rolling
Lock symbols indicate the respective locking status.
Can be attached to a cable loop through openings on the locking rotary assembly
Easy-to-read, high-contrast scale
Permanent readability due to laser marking on the scale bushing
Integrated shift lever with idle function reduces risk of injury and malfunction
Tested in accordance with DIN EN ISO 6789-2:2017
With calibration certificate and serial number
Delivery in sturdy plastic box
DIN 3120, ISO 1174-1, DIN EN ISO 6789-2:2017
Made in Germany
Output: Square, solid 12.5 mm (1/2 inch)
Dimensions / length: 519 mm
Net weight: 1.17 kg
Torque range: 40 - 200 Nm
Tolerance: 3 %
Scale Graduation (Nm): 1 Nm
Actuating force min.-max. kg: 9.4 - 49.5 kg
Number of teeth: 32 (Opening angle 11.25 degrees)
Head Thickness a: 19.6 mm
Head Width b: 44 mm
No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
