Gedore

Gedore 8014290 Puller hydraulic 3-arm pattern 300x190 mm 1.17/1-HSP3

RRP: $1,350.96
Your Price:
$1,134.81 (You save $216.15)
SKU:
GE8014290
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

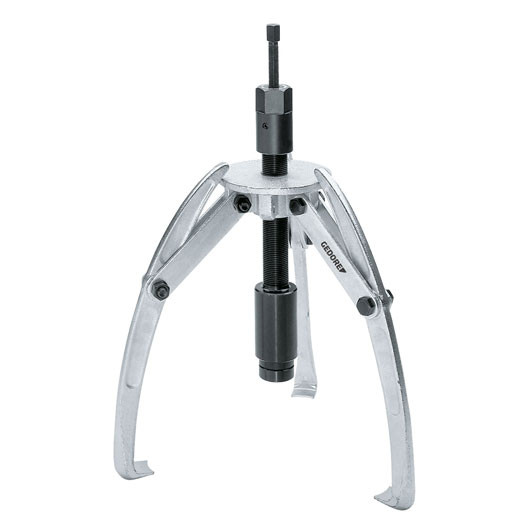

Puller hydraulic 3-arm pattern 300x190 mm

  • Very strong
  • Made for industrial applications and for use on heavy agricultural and construction machines
  • The legs grip automatically
  • With the hydraulic spindle, a controlled and safe pulling action is possible at all times
  • Also available with standard spindle - Model 1.17

Specification:

  • Clamping spread -max- external pulling (a, a1): 300
  • Clamping reach: 190
  • Loading max. t: 12,0
  • Loading max. N.m: 29
  • Hydraulic spindle: 1.06/HSP3
  • Width Across Flat / Actuating Hexagon: 41
  • Width of hooked foot (c): 32
  • Depth of hooked foot (d): 19
  • Thickness of hooked foot at tip (e): 3,0
  • Weight: 11,4
  • Item no.: 1.17/1-HSP3
  • Code no.: 8014290
  • EAN: 4036976105391
