Gedore 8013990 Internal extractor 55-70 mm 1.30/8

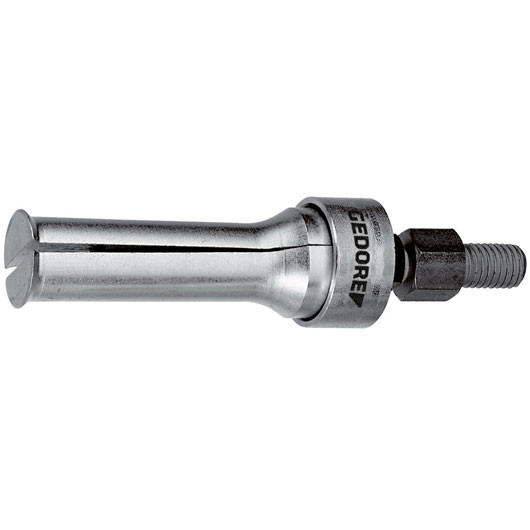

Internal extractor 55-70 mm

• For extremely-tightly-packed ball bearings, bearing races, bushings, and shaft seals Simmering
• Operation: The internal extractor is inserted into the bearing and the spindle screwed in. The sharp turned-out shoulders of the pulling shell jaws will press outwards behind the part to be extracted. The counter-support brace is then added. Both feet must be aligned parallel to the spindle to ensure rigidity.
• The design can vary from the image
• Can be used with either sliding hammer or counter-support brace
• min. and max. dimension in idle and spread state

Specification:

• Spread range: 55-70
• External connecting thread: M14x1,5
• Width Across Flat / Actuating Hexagon: 19
• Use for pumps: 1.36/3
• Use Sliding hammer: 1.35/3
• Weight: 1,800
• Item no.: 1.30/8
• Code no.: 8013990
• EAN: 4036976105360
