Gedore 8011270 Ball bearing extractor M14x210 1.29/3

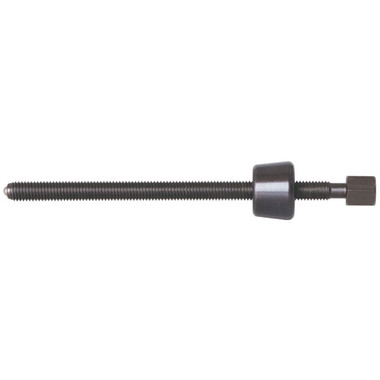

Ball bearing extractor M14x210

• For removing ball bearings that are both on a shaft and in a housing
• The legs selected using the table are inserted into the ball race, evenly distributed in the outer ring according to the number of balls
• The support rings supplied for the ball bearings to be removed are placed on the bearings’ inner races
• The head with spindle is then placed on the centering depression of the shaft and the spindle put under tension with the legs
• Delivery contains head and spindle. Please order suitable legs separately!

Specification:

• Use in machine no.: 1.29/25-40
• Diameter of head: 40
• Height of head (a, a1, b, h, L2, t): 28
• Spindle size (Thread x Length): M 14 x 210
• Width Across Flat / Actuating Hexagon: 17
• Weight: 0,6
• Item no.: 1.29/3
• Code no.: 8011270
• EAN: 4036976105117
