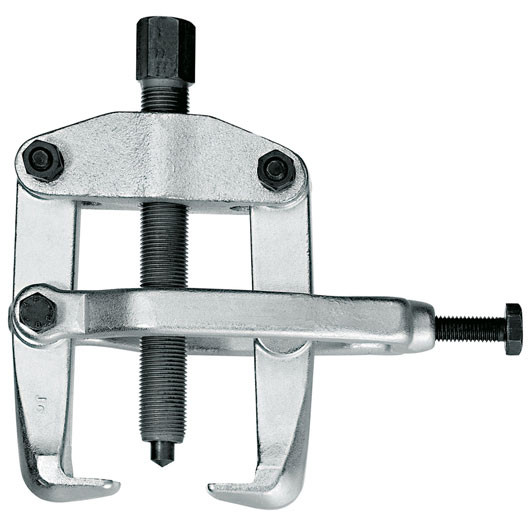

Gedore 8008210 Puller with clamping yoke 150x140 mm 1.20/3

Puller with clamping yoke 150x140 mm

• These pullers are mainly employed for removing car and truck steering arms
• The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position

Specification:

• Clamping spread -max- external pulling (a, a1): 150
• Clamping reach: 140
• Loading max. t: 7,5
• Spindle size (Thread x Length): G 1/2 x 175
• Width Across Flat / Actuating Hexagon: 22
• Width of hooked foot (c): 30
• Depth of hooked foot (d): 18
• Thickness of hooked foot at tip (e): 3,5
• Weight: 3,4
• Hydraulic spindle optional: 1.06/HSP1
• Item no.: 1.20/3
• Code no.: 8008210
• EAN: 4036976104844
