Gedore 8008050 Puller with clamping yoke 90x85 mm 1.20/1

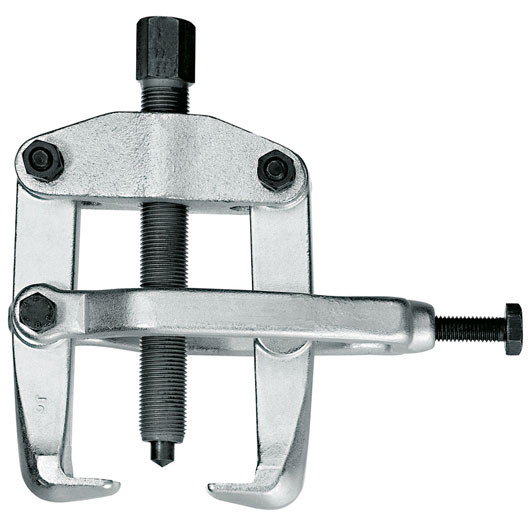

Puller with clamping yoke 90x85 mm

• These pullers are mainly employed for removing car and truck steering arms
• The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position

Specification:

• Clamping spread -max- external pulling (a, a1): 90
• Clamping reach: 85
• Loading max. t: 5,0
• Spindle size (Thread x Length): M 18x1,5 x 130
• Width Across Flat / Actuating Hexagon: 19
• Width of hooked foot (c): 22
• Depth of hooked foot (d): 12
• Thickness of hooked foot at tip (e): 3,0
• Weight: 1,6
• Item no.: 1.20/1
• Code no.: 8008050
• EAN: 4036976104820
