Gedore 8007400 Puller 3-arm pattern 450x420 mm 1.17/2

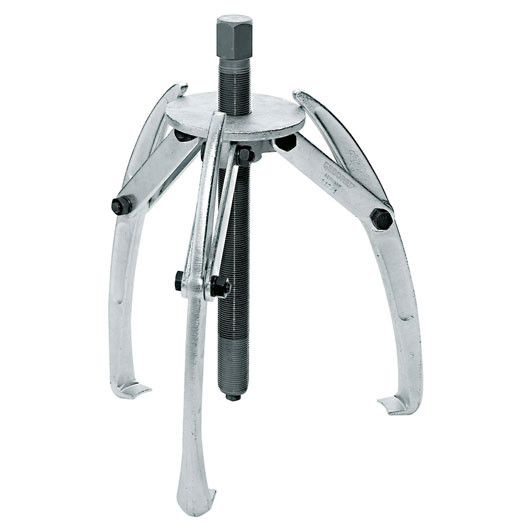

Puller 3-arm pattern 450x420 mm

• Very strong
• Made for industrial applications and for use on heavy agricultural and construction machines
• The legs grip automatically
• Upgradeable with hydraulic spindle (see table)
• For the assembly of a 2- or 3-arm puller

Specification:

• Clamping spread -max- external pulling (a, a1): 450
• Clamping reach: 420
• Loading max. t: 12,0
• Spindle size (Thread x Length): G 1 x 500
• Width Across Flat / Actuating Hexagon: 36
• Hydraulic spindle optional: 1.06/HSP3
• Width of hooked foot (c): 32
• Depth of hooked foot (d): 22
• Thickness of hooked foot at tip (e): 3,0
• Weight: 12,7
• Item no.: 1.17/2
• Code no.: 8007400
• EAN: 4036976104769
