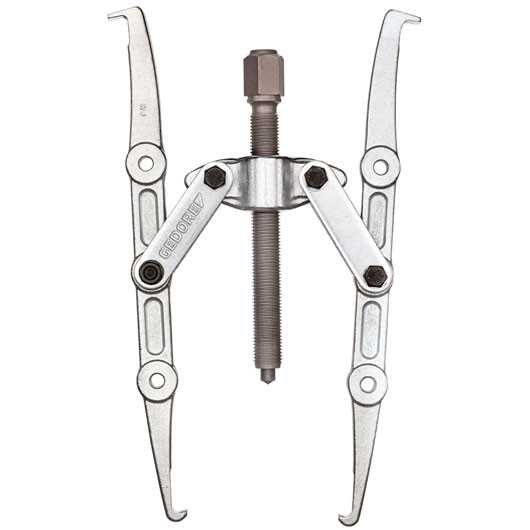

Gedore 8005110 Fan puller 2-arm pattern 150x200 mm 1.14/1L

RRP: $164.02
Your Price:
$137.78 (You save $26.24)
SKU:
GE8005110
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Fan puller 2-arm pattern 150x200 mm

  • Especially slender legs will each adjust to 3 clamping positions
  • The double leg ends, wide or narrow, clamp automatically when under tension
  • For use on fans with 2-holes up from Ø 10 mm

Specification:

  • Clamping spread -max- external pulling (a, a1): 150
  • Clamping reach: 100-200
  • Loading max. t: 1,0
  • Spindle size (Thread x Length): M 14x1,5 x 155
  • Width Across Flat / Actuating Hexagon: 17
  • Width of hooked foot (c): 6,6
  • Width of hooked foot (c2): 10
  • Depth of hooked foot (d): 6
  • Thickness of hooked foot at tip (e): 1
  • Thickness of hooked foot at tip (e): 2
  • Depth of hooked foot (f1): 10
  • Depth of hooked foot (f2): 16,5
  • Weight: 0,9
  • Item no.: 1.14/1L
  • Code no.: 8005110
  • EAN: 4036976104554
