Gedore 8004490 Puller 3-arm pattern 180x200 mm 1.13/3

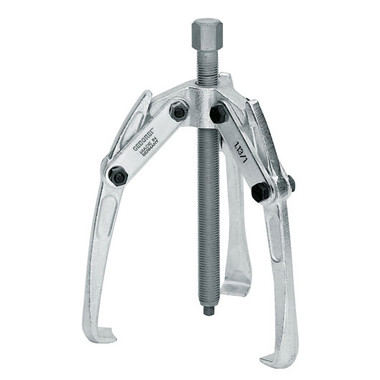

Puller 3-arm pattern 180x200 mm

• Handy robust model for the removal of pulleys, wheels, ball bearings, etc.
• Inexpensive economy model
• The legs grip automatically

Specification:

• Clamping spread -max- external pulling (a, a1): 180
• Clamping reach: 200
• Loading max. t: 12,0
• Spindle size (Thread x Length): G 1/2 x 250
• Width Across Flat / Actuating Hexagon: 22
• Width of hooked foot (c): 32
• Depth of hooked foot (d): 20
• Thickness of hooked foot at tip (e): 4
• Weight: 5,3
• Hydraulic spindle optional: 1.06/HSP1
• Item no.: 1.13/3
• Code no.: 8004490
• EAN: 4036976104493
