Gedore 8004300 Puller 3-arm pattern 130x160 mm 1.13/2

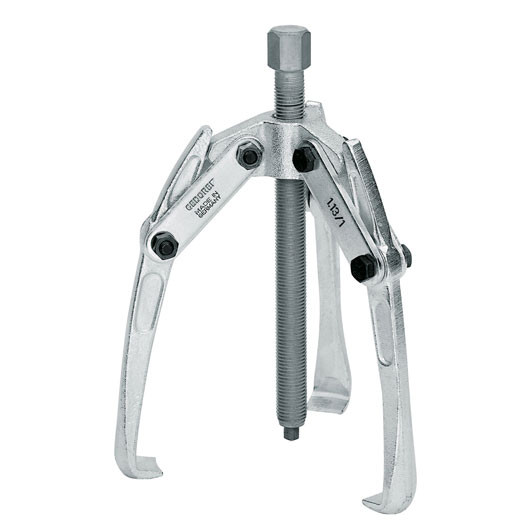

Puller 3-arm pattern 130x160 mm

• Handy robust model for the removal of pulleys, wheels, ball bearings, etc.
• Inexpensive economy model
• The legs grip automatically

Specification:

• Clamping spread -max- external pulling (a, a1): 130
• Clamping reach: 160
• Loading max. t: 7,5
• Spindle size (Thread x Length): M 18x1,5 x 200
• Width Across Flat / Actuating Hexagon: 19
• Width of hooked foot (c): 25
• Depth of hooked foot (d): 14
• Thickness of hooked foot at tip (e): 3
• Weight: 2,5
• Item no.: 1.13/2
• Code no.: 8004300
• EAN: 4036976104486
