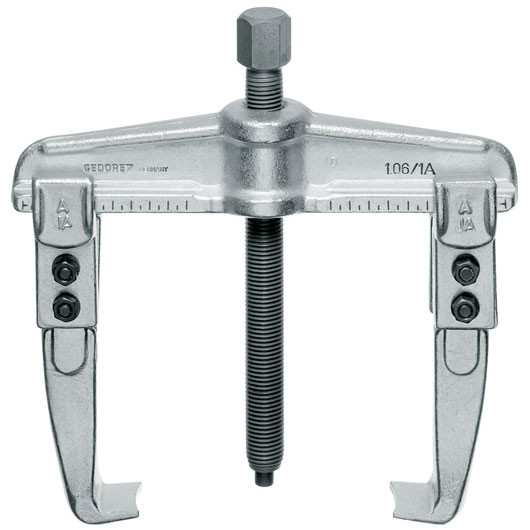

Gedore 8000310 Universal puller, 2-arm pattern 130x100 mm 1.06/1A

Universal puller, 2-arm pattern 130x100 mm

• The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc.
• Strong drop forged design
• Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
• By reversing the legs, this tool can be used as an internal or external puller
• Extra or replacement legs increase versatility
• Upgradeable with hydraulic spindle (see table)

Specification:

• Clamping spread -max- external pulling (a, a1): 130
• Clamping spread -min- internal pulling (a2): 70
• Clamping spread -max- internal pulling (a2): 180
• Clamping reach: 100
• Loading max. t: 3,0
• Spindle size (Thread x Length): M 14x1,5 x 140
• Width Across Flat / Actuating Hexagon: 17
• Width of hooked foot (c): 22
• Depth of hooked foot (d): 12
• Thickness of hooked foot at tip (e): 3,0
• Scale divisions: x
• Weight: 1,3
• Item no.: 1.06/1A
• Code no.: 8000310
• EAN: 4036976104172
