Gedore 8000230 Universal puller, 2-arm pattern 90x100 mm 1.06/1

RRP: $147.55
Your Price:
$123.94 (You save $23.61)
SKU:
GE8000230
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

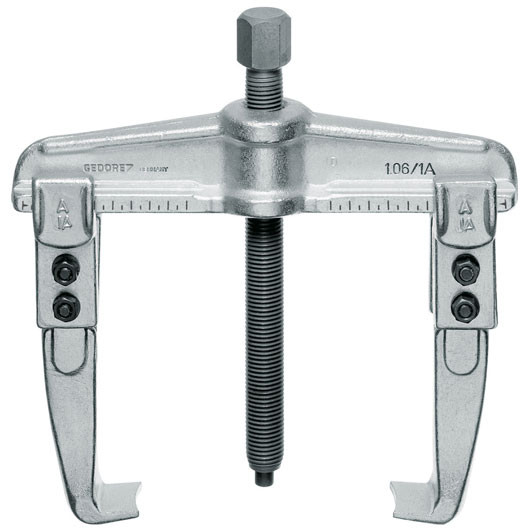

Universal puller, 2-arm pattern 90x100 mm

  • The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc.
  • Strong drop forged design
  • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  • By reversing the legs, this tool can be used as an internal or external puller
  • Extra or replacement legs increase versatility
  • Upgradeable with hydraulic spindle (see table)

Specification:

  • Clamping spread -max- external pulling (a, a1): 90
  • Clamping spread -min- internal pulling (a2): 60
  • Clamping spread -max- internal pulling (a2): 140
  • Clamping reach: 100
  • Loading max. t: 3,0
  • Spindle size (Thread x Length): M 14x1,5 x 140
  • Width Across Flat / Actuating Hexagon: 17
  • Width of hooked foot (c): 22
  • Depth of hooked foot (d): 12
  • Thickness of hooked foot at tip (e): 3,0
  • Scale divisions: x
  • Weight: 1,1
  • Item no.: 1.06/1
  • Code no.: 8000230
  • EAN: 4036976104165
