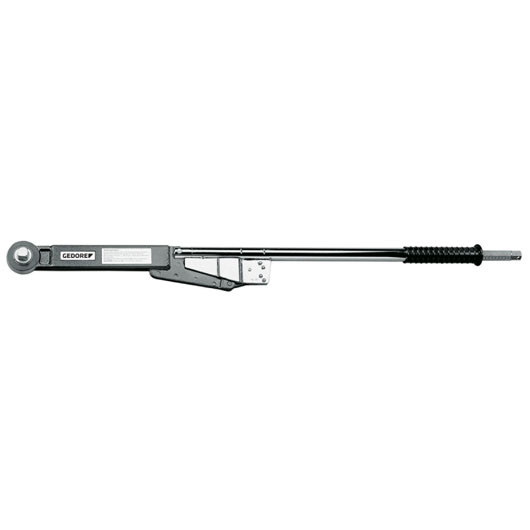

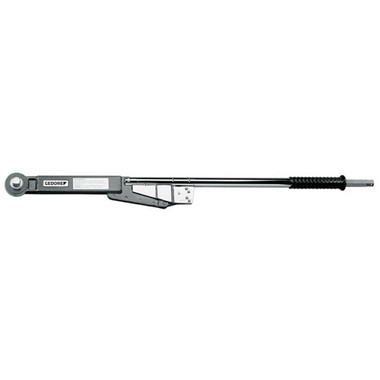

Gedore 7715890 Torque wrench Type 88 3/4", 150-700 Nm 8800-02

Torque wrench Type 88 3/4", 150-700 Nm

Use:

• Controlled screw tightening in the range 100 - 1500 N·m
• Industry and vehicle sector (lorries, industrial vehicles), machine maintenance

Features:

• Adjustable torque wrench - with scale
• 3/4"square drive with integrated ratchet-function or 22 mm spigot-end
• Suitable for bi-directional tightening on account of push-through square drive
• Working accuracy: +/- 4 % tolerance of the value setting
• Acc. to DIN EN ISO 6789, traceable to national standards
• Breaking mechanism as an actuation signal which can be seen and felt and makes over-tightening unlikely
• Dual scale in N·m and lbf·ft
• 5 models in the range 100 - 1500 N·m

Scope of delivery:

• Type 88 breaking torque wrench
• Operating instructions are provided on a label on the torque wrench
• Test certificate acc. to DIN EN ISO 6789
• Delivered in sturdy cardboard packaging

Specification:

• Drive connector square (male): 3/4
• Drive connector pin: 20
• Range of work / measurement N.m (min/max): 150-700
• Range of work / measurement lbf.ft (min/max): 100-500
• Length (L, L1): 1090
• Scale divisions: 10 N·m
• Weight: 6,0
• Item no.: 8800-02
• Code no.: 7715890
• EAN: 4002805880029
