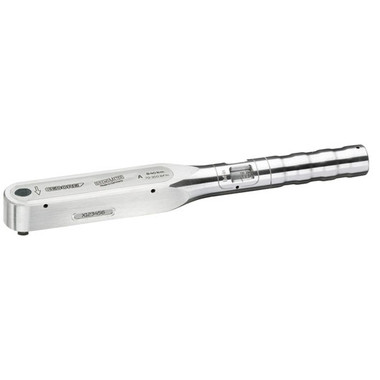

Gedore 7708920 Torque wrench DREMOMETER A A+S 3/8" 8-40 Nm 7560-01

Torque wrench DREMOMETER A A+S 3/8" 8-40 Nm

Technical advantage/function:

• Pre-set value locking and safety device (A+S) eliminates the possibility of unintentional or manipulated adjustment, thereby representing more process reliability of the user
• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a unique lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Single- and double-square drive for controlled bi-directional tightening

Use:

• Controlled screw tightening in the range 6 - 3000 N·m
• For use in almost all industrial manufacturing areas

Features:

• With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards
• Automatic short-path actuation with tactile impulse and audible signal
• Dual scale with corresponding scale graduation (see table)
• Type B, BC, C with push-button release
• Pre-set DREMOMETER for serial production wherever the same value always needs to be applied

Specification:

• Drive Type: s A A+S
• Drive connector square (male): 3/8
• Drive connector square (male) nominal size: 10,0
• Range of work / measurement N.m (min/max): 8-40
• Range of work / measurement lbf.ft (min/max): 70-350
• Scale divisions: 5 N·m / 50 lbf·in
• Distance middle of handgrip to pivot point: 262,0
• Height: 30
• Distance housing - square drive: 17,5
• Length (L, L1): 326,5
• Weight: 1,000
• Item no.: 7560-01
• Code no.: 7708920
• EAN: 4002805756010
