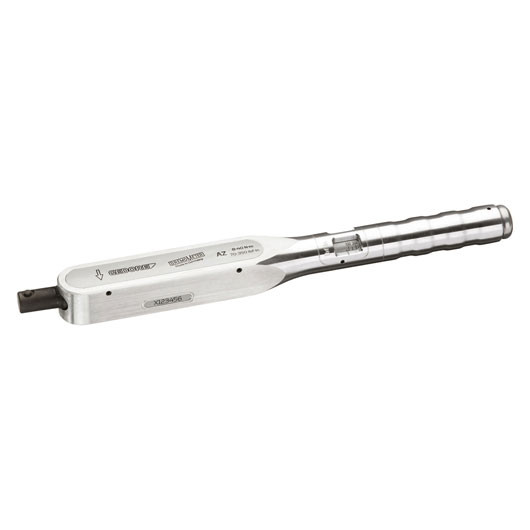

Gedore 7703610 DREMOMETER AZ 8460-01

Torque wrench DREMOMETER AZ 16Z 8-40 Nm

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
• Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
• Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube)
• Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
• Large drive cross-section transfers maximum torques
• Extremely low wear attributable to reduced forces in the lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards

Specification:

• Drive Type: AZ
• Drive connector pin: 16
• Range of work / measurement N.m (min/max): 14824
• Range of work / measurement lbf.ft (min/max): 70-350
• Scale divisions: 5 N·m / 50 lbf·in
• Distance middle of handgrip to pivot point: 300,0
• Depth gauge (C, L): 32
• Width: 35
• Distance middle of screw to pivot point: 38
• Distance housing - drive: 16,5
• Length (L, L1): 366
• Weight: 1,000
• Item no.: 8460-01
• Code no.: 7703610
• EAN: 4002805846018
