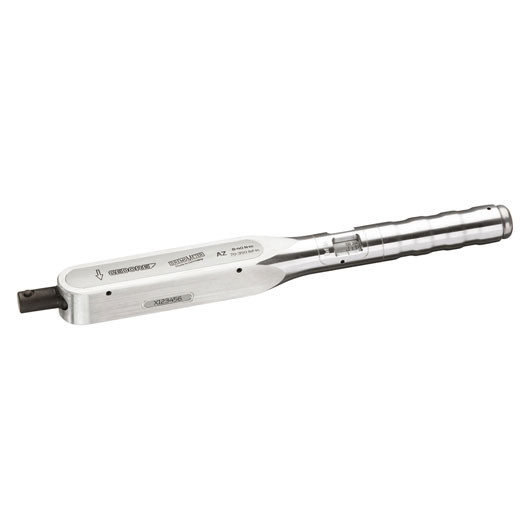

Gedore 7703020 DREMOMETER DZ 8463-10

Torque wrench DREMOMETER DZ 22Z 140-620 Nm

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
• Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
• Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube)
• Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
• Large drive cross-section transfers maximum torques
• Extremely low wear attributable to reduced forces in the lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards

Specification:

• Drive Type: DZ
• Drive connector pin: 22
• Range of work / measurement N.m (min/max): 140-620
• Range of work / measurement lbf.ft (min/max): 100-450
• Scale divisions: 10 N·m / 10 lbf·ft
• Distance middle of handgrip to pivot point: 767,5
• Depth gauge (C, L): 56
• Width: 45
• Distance middle of screw to pivot point: 49
• Distance housing - drive: 17,5
• Length (L, L1): 846
• Weight: 3,000
• Item no.: 8463-10
• Code no.: 7703020
• EAN: 4002805846315
