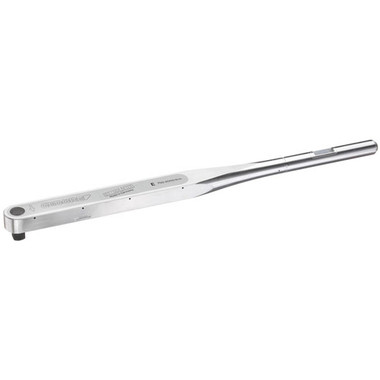

Gedore 7695410 Torque wrench DREMOMETER EL 1" 750-2000 Nm 8569-01

Torque wrench DREMOMETER EL 1" 750-2000 Nm

Use:

• Controlled screw tightening in the range 750-2000 N·m
• For use in almost all industrial manufacturing areas

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• 1" square drive with pin-locking mechanism DIN 3120 - B25, ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Single scale with a scale graduation of 50 N·m

Technical advantage/Function:

• Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a unique lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• Single- and double-square drive for controlled bi-directional tightening

Specification:

• Drive Type: t EL
• Drive connector square (male): 1
• Drive connector square (male) nominal size: 25
• Contents / Execution: with 2 extension tubes
• Range of work / measurement N.m (min/max): 750-2000
• Distance middle of handgrip to pivot point: 2213
• Height: 40
• Distance housing - square drive: 30,0
• Length (L, L1): 932
• Length torque wrench with tube: 2353
• Length extension tube: 925
• Length extension tube 2: 745
• Extension tube Y/N: 8564-92 / 8572-74
• Scale divisions: 50 N·m
• Weight: 12,0
• Item no.: 8569-01
• Code no.: 7695410
• EAN: 4002805856918
