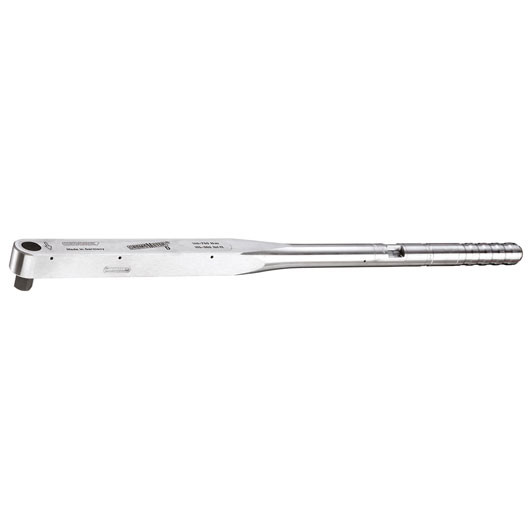

Gedore 7692900 Torque wrench DREMOMETER DL set 8568-30

Torque wrench DREMOMETER DL set

Use:

• Controlled screw tightening in the range 155-760 N·m / 115-560 lbf·ft
• For use in almost all industrial manufacturing areas

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• 3/4" square drive with pin-locking mechanism DIN 3120 - B 20, ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Dual scale with a scale graduation of 10 N·m and 10 lbf·ft

Technical advantage/Function:

• Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a unique lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• Single- and double-square drive for controlled bi-directional tightening

Contents / Execution

• Set mm
• 22 24 27 30 32 36 41 46
• 754-04  200 + 400 mm

Specification:

• Drive Type: t DL
• Drive connector square (male): 3/4
• Drive connector square (male) nominal size: 20
• Range of work / measurement N.m (min/max): 155-760
• Range of work / measurement lbf.ft (min/max): 115-560
• Distance middle of handgrip to pivot point: 719
• Height: 35
• Distance housing - square drive: 22,5
• Length (L, L1): 812
• Scale divisions: 10 N·m / 10 lbf·ft
• Weight: 13,6
• Item no.: 8568-30
• Code no.: 7692900
• EAN: 4002805856833
