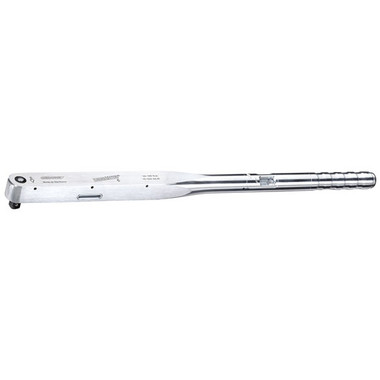

Gedore 7686340 Torque wrench DREMOMETER C in a sheet-metal case 8562-20

Torque wrench DREMOMETER C in a sheet-metal case

Use:

• Controlled screw tightening in the range 60-300 N·m / 45-220 lbf·ft
• For use in almost all industrial manufacturing areas

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• 1/2" square drive with ball locking device DIN 3120 - A 12.5, ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Dual scale with a scale graduation of 5 N·m and 5 lbf·ft
• With push-button release

Technical advantage/Function:

• Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a unique lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• Single- and double-square drive for controlled bi-directional tightening

Specification:

• Drive Type: s C
• Drive connector square (male): 1/2
• Drive connector square (male) nominal size: 12,5
• Contents / Execution: in a sheet-metal case
• Range of work / measurement N.m (min/max): 60-300
• Range of work / measurement lbf.in (min/max): 45-220
• Distance middle of handgrip to pivot point: 529
• Height: 30
• Distance housing - square drive: 17,5
• Length (L, L1): 617
• Scale divisions: 5 N·m / 5 lbf·ft
• Weight: 3,6
• Item no.: 8562-20
• Code no.: 7686340
• EAN: 4002805856222
