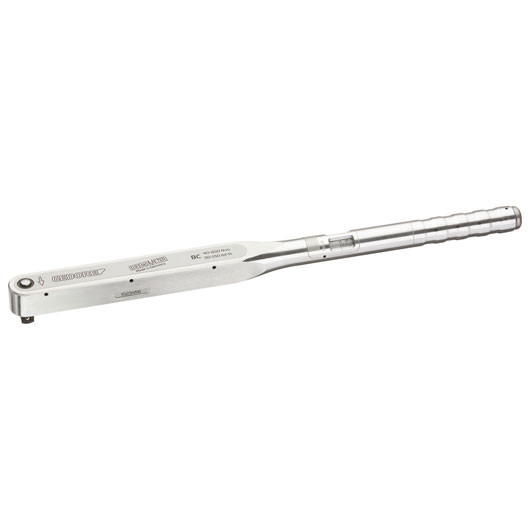

Gedore 7683910 Torque wrench DREMOMETER BC set 8573-03

Torque wrench DREMOMETER BC set

Use:

• Controlled screw tightening in the range 40-200 N·m / 30-150 lbf·ft
• For use in almost all industrial manufacturing areas

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• 1/2" square drive with ball locking device DIN 3120 - A 12.5, ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Dual scale with a scale graduation of 5 N·m and 5 lbf·ft
• With push-button release

Technical advantage/Function:

• Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a unique lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• Single- and double-square drive for controlled bi-directional tightening

Contents / Execution:

• Set mm
• 11 13 14 17 19 21 22 24 27
• 6 8 10 12
• 754-02 125 + 250 mm

Specification:

• Drive Type: s BC
• Drive connector square (male): 1/2
• Drive connector square (male) nominal size: 12,5
• Range of work / measurement N.m (min/max): 40-200
• Range of work / measurement lbf.ft (min/max): 30-150
• Distance middle of handgrip to pivot point: 463
• Height: 30
• Distance housing - square drive: 17,5
• Length (L, L1): 551
• Scale divisions: 5 N·m / 5 lbf·ft
• Weight: 5,1
• Item no.: 8573-03
• Code no.: 7683910
• EAN: 4002805857335
