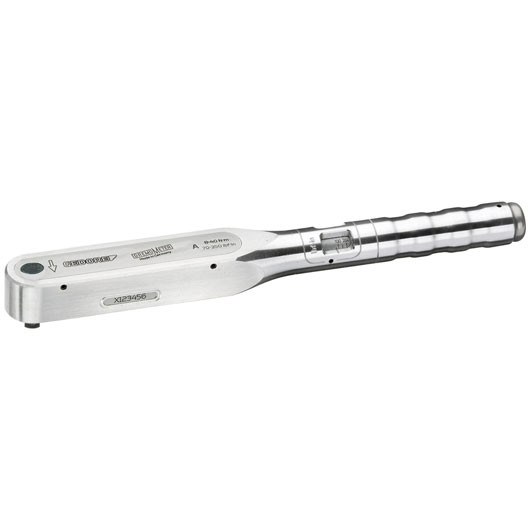

Gedore 7682000 Torque wrench DREMOMETER A 3/8" 8-40 Nm 8560-01

RRP: $802.24
Your Price:
$673.88 (You save $128.36)
SKU:
GE7682000
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Torque wrench DREMOMETER A 3/8" 8-40 Nm

Use:

  • Controlled screw tightening in the range 8-40 N·m / 70-350 lbf·in
  • For use in almost all industrial manufacturing areas

Features:

  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
  • 3/8" square drive with ball locking device DIN 3120 - A 10, ISO 1174
  • Automatic short-path actuation with tactile impulse and audible signal
  • Dual scale with a scale graduation of 5 N·m and 50 lbf·in

Technical advantage/Function:

  • Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
  • No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
  • Extremely low wear attributable to reduced forces in a unique lever mechanism
  • Forged lever chain from our own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
  • Single- and double-square drive for controlled bi-directional tightening

Specification:

  • Drive: s A
  • Drive connector square (male): 3/8
  • Drive connector square (male) nominal size: 10
  • Contents / Execution: ? in plastic box
  • Range of work / measurement N.m (min/max): 8/40
  • Range of work / measurement lbf.in (min/max): 70-350
  • Distance middle of handgrip to pivot point: 262
  • Height: 30
  • Distance housing - square drive: 17,5
  • Length (L, L1): 338
  • Scale divisions: 5 N·m / 50 lbf·in
  • Weight: 1,0
  • Item no.: 8560-01
  • Code no.: 7682000
  • EAN: 4002805856017
