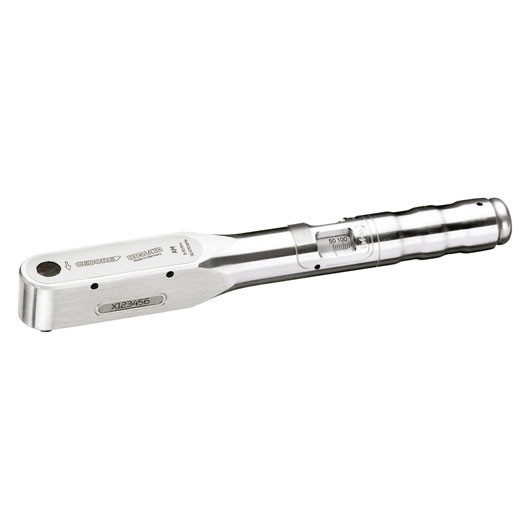

Gedore 7674170 Torque wrench DREMOMETER AM set 8554-03

Torque wrench DREMOMETER AM set mm

Use:

• Controlled screw tightening in the range 6-30 N·m / 50-270 lbf·in
• For use in almost all industrial manufacturing areas

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• 1/4" square drive with ball locking device DIN 3120 - A 6.3 ISO 1174
• Automatic short-path actuation with tactile impulse and audible signal
• Dual scale with a scale graduation of 1 N·m and 10 lbf·in

Technical advantage/Function:

• Lightweight and robust (as housing is made of an aluminium alloy), very workshop-friendly
• No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load.
• Extremely low wear attributable to reduced forces in a unique lever mechanism
• Forged lever chain from our own quality forge
• Maximum precision even when subjected to extreme continuous use
• Long life cycles and tool lives
• Easy operation - fast and safe torque tightening
• Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
• Single- and double-square drive for controlled bi-directional tightening

Contents / Execution:

• Set mm
• 8 9 10 11 12 13 14
• 3 5.5 4 5 6 8
• T20 T27 T30
• 754-00 55 + 97 mm

Specification:

• Drive: s AM
• Drive connector square (male): 1/4
• Drive connector square (male) nominal size: 6,3
• Range of work / measurement N.m (min/max): 6-30
• Range of work / measurement lbf.in (min/max): 50-270
• Distance middle of handgrip to pivot point: 206
• Height: 30
• Distance housing - square drive: 15
• Length (L, L1): 268
• Scale divisions: 1 N·m / 10 lbf·in
• Weight: 1,300
• Item no.: 8554-03
• Code no.: 7674170
• EAN: 4002805855430
