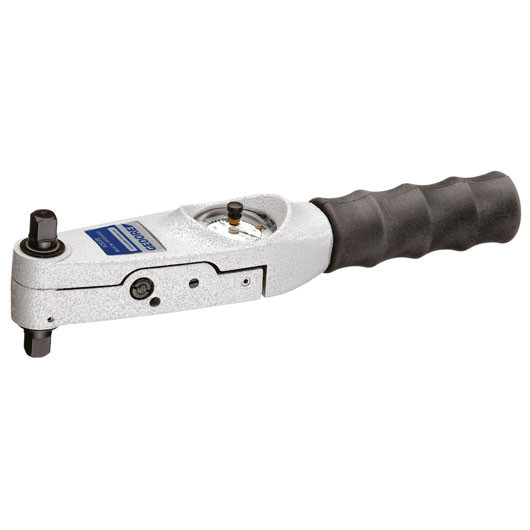

Gedore 7652010 Dial measuring torque wrench Type 83 160-800 Nm 8304-80

Dial measuring torque wrench Type 83 160-800 Nm

Use:

• Controlled tightening and verification of tightening values
• For use in all areas of industrial manufacturing and in quality control
• Working ranges of 0.8 to 2000 N·m are covered

Features:

• Dial-indicating torque wrench with dual scale and multi-functional slave pointer
• 1/4", 3/8", 1/2", 3/4" or 1" double-square drive with ball locking device for controlled bi-directional tightening
• Models 8301-04 to 8304-80: With integrated ratchet-function
• For controlled screw tightening and torque measurements
• Working accuracy: +/- 4 % tolerance of the indicated torque
• Acc. to DIN EN ISO 6789, traceable to national standards
• With dual scale in N·m and lbf·in or lbf·ft double-tinted clearly readable face
• Integrated overload protection - mechanical stop up to max. 25 % overload of the maximum value
• Housing made of lightweight, robust special aluminium construction - lacquered, silver-grey
• Black, non-slip rubber handgrips
• Models 8301-04 to 8301-40: EPA-conformant (Electrostatic Protected Area), for use in sensitive electrostatic applications
• Audio-visual signal is standard on models 8303-40 to 8305-20

Scope of delivery:

• Dial-measuring torque wrench type 83
• Battery (models 8303-40 to 8305-20)
• Test certificate acc. to DIN EN ISO 6789
• Delivered in a sturdy black plastic box (no. 8301-04 to 8302-20), otherwise in sturdy cardboard packaging (no. 8303-40 to 8305-20)

Specification:

• Drive Type: t
• Drive connector square (male): 3/4
• Drive connector square (male) nominal size: 20,0
• Range of work / measurement N.m (min/max): 160-800
• Range of work / measurement lbf.ft (min/max): 120-600
• Length (L, L1): 1000
• Scale divisions: 20 N·m / 20 lbf·ft
• Height: 123
• Weight: 4,8
• Item no.: 8304-80
• Code no.: 7652010
• EAN: 4002805834084
