Gedore 7602180 Torque wrench TORCOFIX FS 9x12, 5-50 Nm 4150-50

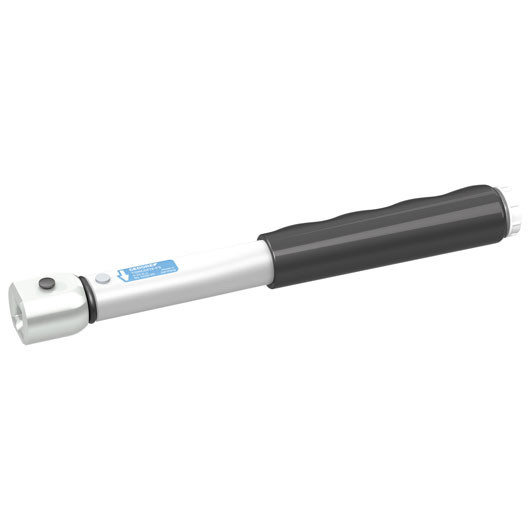

Torque wrench TORCOFIX FS 9x12 10-50 Nm

Use:

• Controlled screw tightening in the most widely used range of 5 - 200 N·m without scale
• Pre-set, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• For controlled bi-directional tightening
• Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18 mm)
• Release system triggers a tactile and audible signal
• Factory depth gauge: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
• Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
• Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).
• If a factory setting is required, please specify the N·m value on the order

Specification:

• Drive connector rectangular: 9 x 12
• Range of work / measurement N.m (min/max): 10-15
• Distance middle of handgrip to pivot point: 194
• Depth gauge (C, L): 17,5
• Width: 22
• Distance housing - drive: 31
• Length (L, L1): 246
• Weight: 0,270
• Item no.: 4150-50
• Code no.: 7602180
• EAN: 4002805415504
