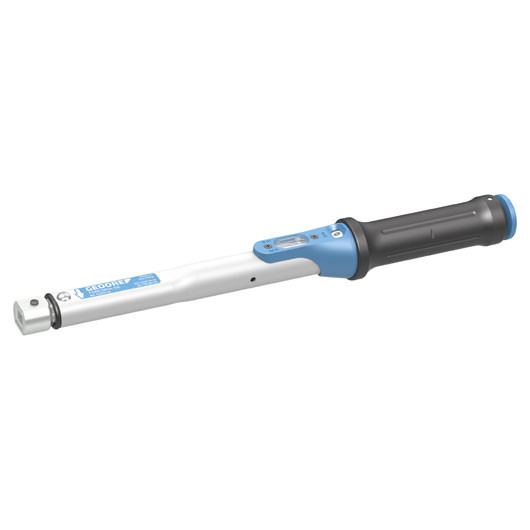

Gedore 7601020 Torque wrench TORCOFIX SE 14x18, 60-300 Nm 4300-01

Torque wrench TORCOFIX SE 14x18, 60-300 Nm

Use:

• Controlled screw tightening in the most widely used range of 5 - 400 N·m / 3.7 - 300 lbf·ft
• Adjustable, releasing and sturdy tubular torque wrench with rectangular cavity for industry and the trades

Features:

• Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
• For controlled bi-directional tightening
• Sturdy, varnished tubular steel construction, with zinc-plated rectangular cavity (9x12 mm or 14x18 mm) and high-grade plastic parts
• Ergonomically shaped, convenient black plastic handgrip with calibration aid
• Dual scale N·m and lbf·ft below a window with a magnifying-glass effect
• With micrometre scale for main N·m scale for setting interim values
• Release system triggers a tactile and audible signal
• Ergonomic system for torque adjustment
• Factory depth gauges: 17.5 mm (9x12 mm) or 25 mm (14x18 mm)
• Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise
• Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket).

Specification:

• Drive connector rectangular: 14 x 18
• Range of work / measurment N.m (min / max): 60-300
• Range of work / measurment lbf.ft (min / max): 45-220
• Scale divisions: 10 N·m
• Scale ring graduation: 1 N·m
• Distance middle of handgrip to pivot point: 492,2
• Depth gauge (C, L): 25,0
• Width: 27,5
• Distance housing - drive: 42
• Length (L, L1): 561,5
• Weight: 1,200
• Item no.: 4300-01
• Code no.: 7601020
• EAN: 4002805430019
