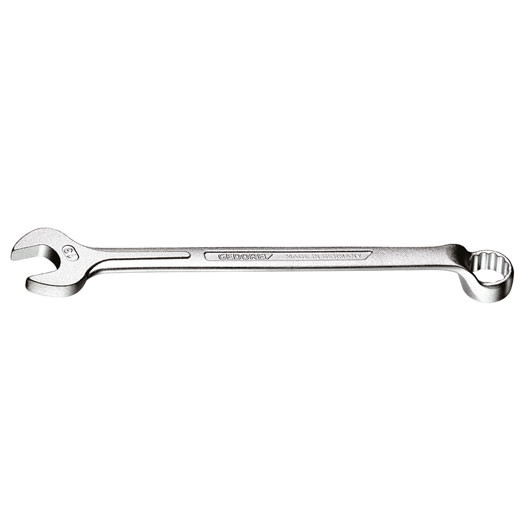

Gedore 6001050 Combination spanner 12 mm 1 B 12

Combination spanner 12 mm

• Acc. to DIN 3113 Form B, ISO 3318, ISO 7738
• Ring 10° offset from shaft, extra strong rings but thin wall
• Sizes 5 and 5.5 mm with hexagon ring, up from size 6 mm with UD profile
• GEDORE vanadium steel 31CrV3, chrome-plated
• not standardised

Specification:

• Width Across Flat: 12,0
• Length (L, L1): 168
• Height of head (a, a1, b, h, L2, t): 9,5
• Height of head (a2): 5,3
• Width of head (b, b1, n, W3): 18,2
• Width of head (b2): 27,2
• Height of offset (h): 16,0
• Weight: 0,064
• Item no.: 1 B 12
• Code no.: 6001050
• EAN: 4010886600108
