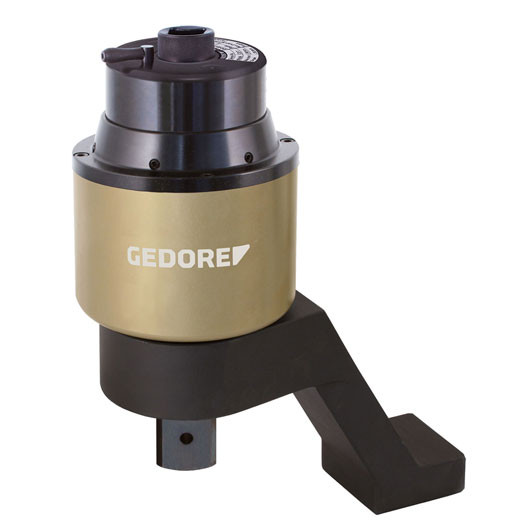

Gedore 2653125 Torque Multiplier DREMOPLUS ALU 8000 Nm DVV-80ZRS

RRP: $24,267.40
Your Price:
$20,384.62 (You save $3,882.78)
SKU:
GE2653125
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Torque Multiplier DREMOPLUS ALU 8000 Nm

Particularly suitable for:

  • Machinery and plant engineering
  • Cable cars, lifts and masts
  • Heavy industry, construction sites
  • Bridge construction
  • Shipbuilding, aircraft and railway construction
  • Refineries, plastics industry
  • Power plants of all kinds

Features:

  • Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
  • With a two-stage planet gear
  • High-performance aluminium housing
  • Torque multiplication ratio: 1:18, 1:22, 1:28.5, 1:39
  • All models with anti-wind-up ratchet (RS)
  • With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise
  • Z-form, offset reaction arm depending on model made of chrome-vanadium steel
  • Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
  • Guaranteed accuracy: Better than +/- 3 % tolerance
  • For operation in combination with a torque wrench
  • 4 models for maximum load in the range between max. 6000 N·m and max. 13000 N·m
  • Output square with drill hole for impact sockets with safety pin and ring

Scope of delivery:

  • Torque Multiplier DREMOPLUS ALU
  • With Z-form offset reaction arm
  • Delivery in sturdy shipping case with foam insert
  • Factory test certificate and setting table
  • Detailed technical information is available on request

Specification:

  • Output torque (max.N.m): 8000
  • Output torque (max.lbf·ft): 5870
  • Transmission of power: 1:22
  • Drive connector (entry): 3/4
  • Drive connector (exit): 1.1/2
  • Width of torque multiplier: 128
  • Height of torque multiplier: 277
  • Distance driving-beginning of reaction arm (minimum): 110
  • Distance driving-end of reaction arm (maximum): 190
  • Total height with reaction arm (minimum): 338
  • Total height with reaction arm (maximum): 342
  • Input torque (max.N.m): 420
  • Input torque (max.lbf·ft): 310
  • Weight: 13,4
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: DVV-80ZRS
  • Code no.: 2653125
  • EAN: 4010886934340
