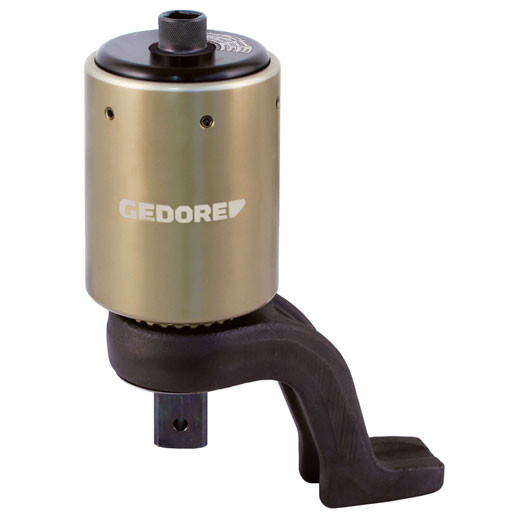

Gedore 2653109 Torque multiplier DREMOPLUS ALU 4000 Nm DVV-40ZRS

RRP: $9,220.60
Your Price:
$7,745.30 (You save $1,475.30)
SKU:
GE2653109
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Torque multiplier DREMOPLUS ALU 4000 Nm

Particularly suitable for:

  • Machinery and plant engineering
  • Cable cars, lifts and masts
  • Heavy industry, construction sites
  • Bridge construction
  • Shipbuilding, aircraft and railway construction
  • Refineries, plastics industry
  • Power plants of all kinds

Features:

  • Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
  • With a two-stage planet gear
  • High-performance aluminium housing
  • Torque multiplication ratio: 1:16
  • DVV-40ZRS model with anti-wind-up ratchet (RS)
  • With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise
  • Z-form, offset reaction arm depending on model made of chrome-vanadium steel
  • Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
  • Guaranteed accuracy: Better than +/- 3 % tolerance
  • For operation in combination with a torque wrench
  • 2 models for a maximum load at around a max. 4000 N·m
  • Output square with drill hole for impact sockets with safety pin and ring

Scope of delivery:

  • Torque Multiplier DREMOPLUS ALU
  • With Z-form offset reaction arm
  • Delivery in sturdy shipping case with foam insert
  • Factory test certificate and setting table
  • Detailed technical information is available on request

Specification:

  • Output torque (max.N.m): 4000
  • Output torque (max.lbf·ft): 2930
  • Transmission of power: 1:16
  • Drive connector (entry): 1/2
  • Drive connector (exit): 1
  • Width of torque multiplier: 88
  • Height of torque multiplier: 227
  • Distance driving-beginning of reaction arm (minimum): 71
  • Distance driving-end of reaction arm (maximum): 136
  • Total height with reaction arm (minimum): 264
  • Total height with reaction arm (maximum): 270
  • Input torque (max.N.m): 310
  • Input torque (max.lbf·ft): 230
  • Weight: 5,7
  • Packing Unit (PU): 1
  • Target group: Industry, Mechanical Engineering
  • Item no.: DVV-40ZRS
  • Code no.: 2653109
  • EAN: 4010886934302
