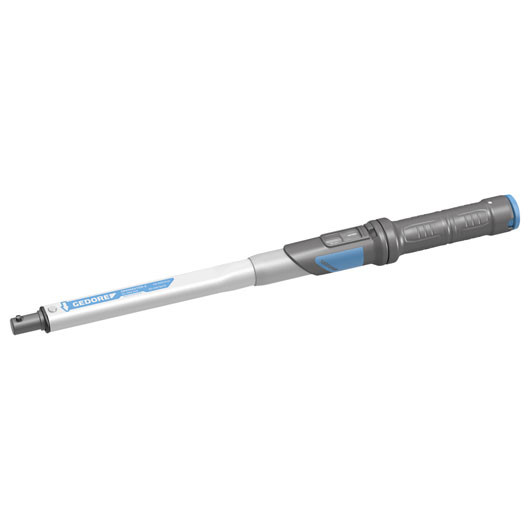

Gedore 2641577 Torque wrench DREMASTER Z 22, 250-850 Nm DMZ 850

RRP: $1,880.36
Your Price:
$1,579.50 (You save $300.86)
SKU:
GE2641577
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

Torque wrench DREMASTER Z 22, 250-850 Nm

Use:

  • Controlled screw tightening in the most common range of 20 - 850 N·m / 15 - 630 lbf·ft (guide for screws M7-10.9 to M24-8.8, M30-5.6)
  • Adjustable, releasing and sturdy tubular torque wrench with spigot end for industry and the trades

Features:

  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate allowing for operations to be traced back. Calibrated to a permitted +/- 3 % deviation and better. The specifications of the standard (+/- 4 %) are exceeded.
  • For controlled bi-directional tightening
  • Sturdy, varnished tubular steel construction, with phosphated spigot end (Ø 16 mm or Ø 22 mm) and high-grade plastic parts
  • Ergonomically shaped plastic grip with calibration aid
  • Change-over between N·m main scale and lbf·ft ancillary scale to avoid reading errors when setting the torque wanted.
  • With micrometre scale for main N·m scale for setting interim values
  • Release system triggers a tactile and audible signal
  • Ergonomic system for torque adjustment with reference symbol
  • Provision for rapid setting with hexagon allen key, not included
  • Secured adjusting/setting system
  • Factory depth gauge: 32 mm (Ø 16 mm) or 56 mm (Ø 22 mm)
  • Operation only with end fittings with standardised depth gauge - otherwise inaccuracies may arise.
  • Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)

Specification:

  • Drive connector pin: 22
  • Range of work/measurement N·m (min/max): 250-850
  • Range of work/measurement lbf·ft (min/max): 185-630
  • Scale divisions: 10 N.m
  • Scale ring graduation: 1 N.m
  • Length (L,L1): 1.340,7
  • Distance middle of handgrip to pivot point: 1.259,4
  • Depth gauge(C,L): 56
  • Width: 38,5
  • Distance middle of screw to pivot point: 465
  • Weight: 5,000
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: DMZ 850
  • Code no.: 2641577
  • EAN: 4002805931646
