Gedore

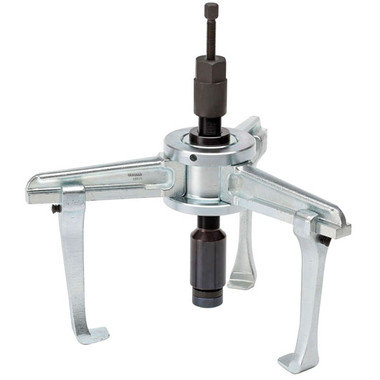

Gedore 2546582 Universal puller, hydraulic, 3-arm pattern, rigid legs with leg brake 1.07/4A1-B-HSP3

RRP: $2,788.51
Your Price:
$2,342.35 (You save $446.16)
SKU:
GE2546582
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

Universal puller, hydraulic, 3-arm pattern, rigid legs with leg brake

  • Just like our standard model no. 1.06, this puller is designed for all branches of industry, but particularly for the construction of electric motors
  • It is also suitable for removing heavy, multistage V-belt pulley wheels, flywheels, gear wheels, etc.
  • Pins are used to lock the arms at 120 degrees to each other on the hub
  • Rigid legs forged from one piece
  • Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
  • By reversing the legs, this tool can be used as an internal or external puller
  • This puller may also be used with the hydraulic aid no. 1.50 without requiring any reduction bushing
  • On request, this puller is also available with further legs and extendable up to 6 arms
  • The pressure piece can be replaced by a tip and lengthened, as required.
  • The small pressure spindle is secured with an unscrewing lock to stop any accidental withdrawal.
  • Also available with standard spindle - Model 1.07/4-B

Specification:

  • Clamping spread-max-external pulling (a,a1): 580
  • Clamping spread-min-external pulling (a1): 150
  • Clamping spread-max-internal pulling (a2): 640
  • Clamping spread-min-internal pulling (a2): 270
  • Clamping reach: 140
  • Loading max. t: 10
  • Loading max. N·m: 25
  • Hydraulic spindle: 1.06/HSP3
  • Width of hooked foot (c): 36
  • Depth of hooked foot (d): 28
  • Thickness of hooked foot at tip (e): 6,5
  • Weight: 23,1
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.07/4A1-B-HSP3
  • Code no.: 2546582
  • EAN: 4036976126068
