Gedore

Gedore 2300036 Universal puller HIGH POWER 2-arm pattern, hydraulic, leg brake 350x200 mm 1.04/HP3A-B-HSP2

RRP: $1,249.00
Your Price:
$1,049.16 (You save $199.84)
SKU:
GE2300036
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

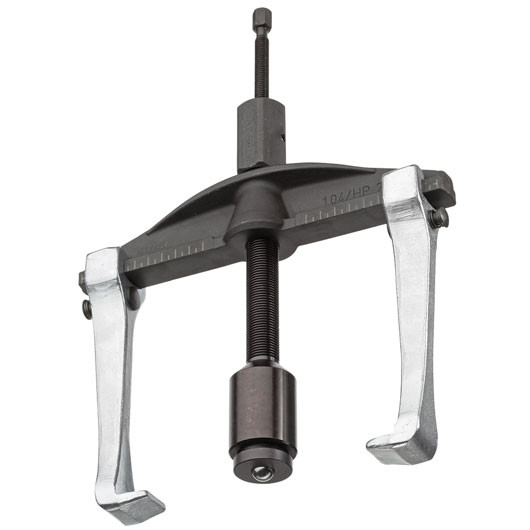

Universal puller HIGH POWER 2-arm pattern, hydraulic, leg brake 350x200 mm

  • Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability
  • Strong drop forged pattern
  • Rigid legs forged from one piece
  • Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
  • By reversing the legs, this tool can be used as an internal or external puller
  • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  • With the hydraulic spindle, a controlled and safe pulling action is possible at all times
  • Also available with standard spindle - Model 1.04/HP-B

Specification:

  • Clamping spread-max-external pulling (a, a1): 350
  • Clamping spread-min-internal pulling (a2): 150
  • Clamping spread-max-internal pulling (a2): 420
  • Clamping reach: 120
  • Loading max. t: 12,0
  • Loading max. N.m: 19
  • Hydraulic spindle: 1.06/HSP2
  • Width of hooked foot (c): 36
  • Depth of hooked foot (d): 32
  • Thickness of hooked foot at tip (e): 5,0
  • Scale divisions: x
  • Weight: 7,8
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.04/HP3A-B-HSP2
  • Code no.: 2300036
  • EAN: 4036976124637
