Gedore

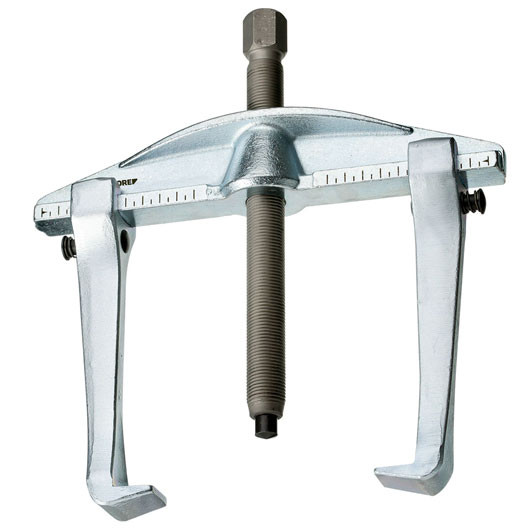

Gedore 1981129 Universal puller, 2-arm pattern, rigid legs with leg brake 200x150 mm 1.04/2A-B

RRP: $353.20
Your Price:
$296.69 (You save $56.51)
SKU:
GE1981129
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

Universal puller, 2-arm pattern, rigid legs with leg brake 200x150 mm

  • Due to the bending-moment reinforcement on its back face, the energy-saving design of the cross-beam means even stronger and safer pulling work
  • Strong drop forged pattern
  • Rigid legs forged from one piece
  • The legs clamp automatically when under tension
  • Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
  • By reversing the legs, this tool can be used as an internal or external puller
  • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  • Spindle with replaceable ball and tip
  • Spindle thermo-chemically hardened
  • Upgradeable with hydraulic spindle (see table)

Specification:

  • Clamping spread-max-external pulling (a,a1): 200
  • Clamping spread-min-internal pulling (a2): 110
  • Clamping spread-max-internal pulling (a2): 260
  • Clamping reach: 150
  • Loading max.t: 5,0
  • Spindle size (Thread X Length): G 1/2 x 210
  • Width Across Flat/Actuating Hexagon: 22
  • Width of hooked foot (c): 30
  • Depth of hooked foot (d): 24
  • Thickness of hooked at tip (e): 3,5
  • Weight: 3,4
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.04/2A-B
  • Code no.: 1981129
  • EAN: 4036976121759
