Gedore

Gedore 1956396 Universal puller, 2-arm pattern, rigid legs with leg brake 340x200 mm 1.06/3A1-B

RRP: $628.39
Your Price:
$527.85 (You save $100.54)
SKU:
GE1956396
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

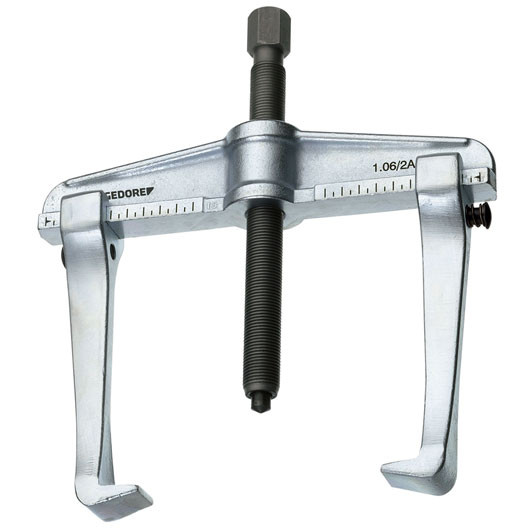

Universal puller, 2-arm pattern, rigid legs with leg brake 340x200 mm

  • Strong drop forged design
  • Rigid legs forged from one piece
  • Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
  • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  • By reversing the legs, this tool can be used as an internal or external puller
  • Extra or replacement legs increase versatility
  • Upgradeable with hydraulic spindle (see table)

Specification:

  • Clamping spread-max-external pulling (a,a1): 340
  • Clamping spread-min-internal pulling (a2): 125
  • Clamping spread-max-internal pulling (a2): 430
  • Clamping reach: 200
  • Loading max.t: 7,5
  • Spindle size (Thread X Length): G 3/4 x 280
  • Width Across Flat/Actuating Hexagon: 27
  • Width of hooked foot (c): 36
  • Depth of hooked foot (d): 32
  • Weight: 7,5
  • Packing Unit (PU): 1
  • Target group: Industry, Automotive
  • Item no.: 1.06/3A1-B
  • Code no.: 1956396
  • EAN: 4036976121018
