Gedore

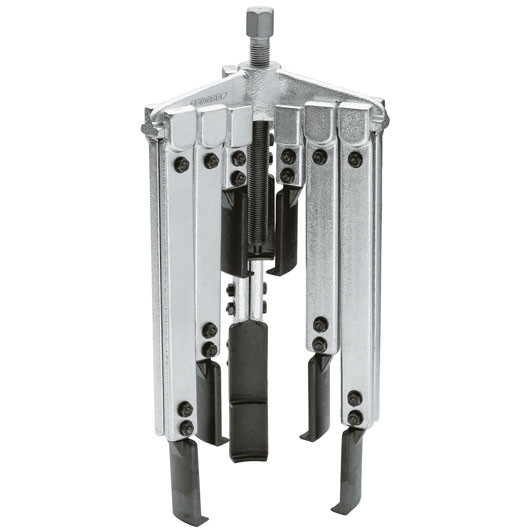

Gedore 1675990 Puller set with 9 legs 200x150/220/300 mm 1.07/AS-2

RRP: $1,356.51
Your Price:
$1,139.47 (You save $217.04)
SKU:
GE1675990
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

Puller set with 9 legs 200x150/220/300 mm

  • 3-arm puller, with 9 slim legs in 3 lengths
  • Particularly suitable for barely accessible places

Contents:

  • 1 cross-beam, 3-arm pattern 260 mm, No. 107/2A03
  • 1 spindle 22 mm, G 1/2", 210 mm, No. 1.2106210
  • 3 pulling legs slim pattern 150 mm, No. 106/B-150-S
  • 3 pulling legs slim pattern 220 mm, No. 106/B-220-S
  • 3 pulling legs slim pattern 300 mm, No. 106/B-300-S

Specification:

  • Clamping spread-max-external pulling (a,a1): 200
  • Clamping reach: 150 / 220 / 300
  • Loading max. t: 5,0
  • Spindle size (Thread X Length): G 1/2 x 210
  • Width Across Flat/Actuating Hexagon: 22
  • Hydraulic spindle optional: 1.06/HSP1
  • Width of hooked foot (c): 40,0
  • Depth of hooked foot (d): 7,0
  • Thickness of hooked foot at tip (e): 5,0
  • Depth of hooked foot (f1): 15,0
  • Weight: 11,5
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.07/AS-2
  • Code no.: 1675990
  • EAN: 4036976112429
