Gedore 1675974 Puller set with 6 legs 200x150/220/300 mm 1.06/AS-2

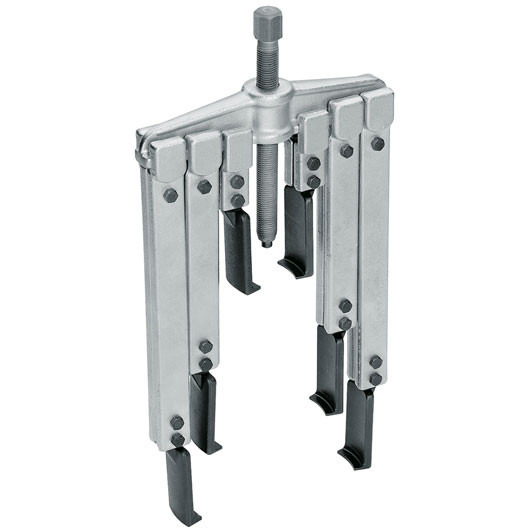

Puller set with 6 legs 200x150/220/300 mm

• 1 cross-beam, 2-arm pattern 260 mm, No. 106/2A03
• 1 spindle 22 mm, G 1/2", 210 mm, No. 1.2106210
• 2 pulling legs slim pattern 150 mm, No. 106/B-150-S
• 2 pulling legs slim pattern 220 mm, No. 106/B-220-S
• 2 pulling legs slim pattern 300 mm, No. 106/B-300-S

Specification:

• Clamping spread-max-external pulling (a,a1): 260
• Clamping reach: 150 / 220 / 300
• Loading max. t: 5,0
• Spindle size (Thread X Length): G 1/2 x 210
• Width Across Flat/Actuating Hexagon: 22
• Hydraulic spindle optional: 1.06/HSP1
• Width of hooked foot (c): 40,0
• Depth of hooked foot (d): 7,0
• Thickness of hooked foot at tip (e): 5,0
• Depth of hooked foot (f1): 15,0
• Weight: 8,1
• Packing Unit (PU): 1
• Target group: Industry
• Item no.: 1.06/AS-2
• Code no. 1675974
• EAN 4036976112412
