Gedore

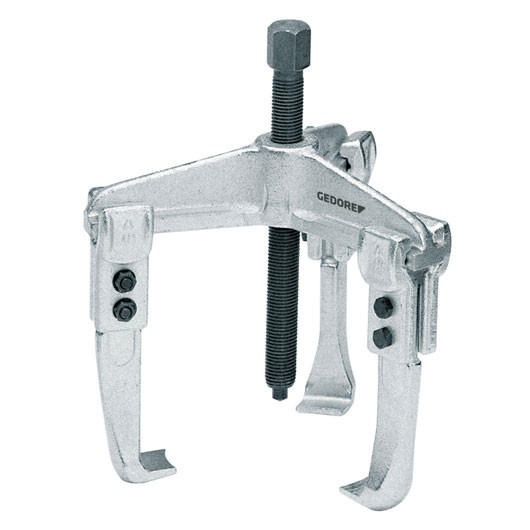

Gedore 1541757 Universal puller, 3-arm pattern 250x200 mm 1.07/3

RRP: $735.90
Your Price:
$618.16 (You save $117.74)
SKU:
GE1541757
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

Universal puller, 3-arm pattern 250x200 mm

  • Even load distribution over 3 legs ensures secure grip and balanced pull
  • By reversing the legs, this tool can be used as an internal or external puller
  • Extra or replacement legs increase versatility
  • Upgradeable with hydraulic spindle (see table)

Specification:

  • Clamping-spread-max-external pulling (a,a1): 250
  • Clamping-spread-min-internal pulling (a2): 100
  • Clamping-spread-max-external pulling (a2): 400
  • Clamping reach: 200
  • Loading max. t: 7,5
  • Spindle size (Thread X Length): G 3/4 x 280
  • Width Across Flat/Actuating Hexagon: 27
  • Hydraulic spindle optional: 1.06/HSP2
  • Width of hooked foot (c): 36
  • Depth of hooked foot (d): 28
  • Thickness of hooked foot at tip (e): 6,5
  • Weight: 9,3
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.07/3
  • Code no.: 1541757
  • EAN: 4036976111408
