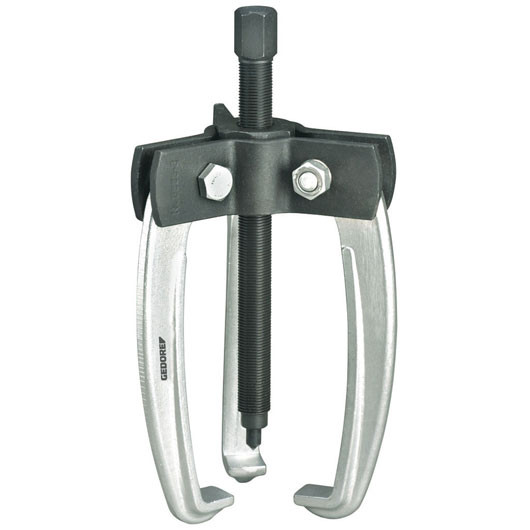

Puller, 3-arm pattern 160x140 mm
The tried and tested range for economical bearing removal
Specification:
- Clamping spread-max-external-pulling (a,a1): 160
- Clamping reach: 140
- Loading max.t: 3,0
- Spindle size (Thread X Length): M 18x1,5 x 215
- Width Across Flat/Actuating Hexagon: 19
- Width of hooked foot (c): 21
- Depth of hooked foot (d): 20
- Thickness of hooked foot at tip(e): 6,5
- Weight: 2,7
- Packing Unit (PU): 1
- Target group: Industry
- Item no.: 1.19/2
- Code no.: 1465015
- EAN: 4036976111095
