Gedore

Gedore 1251341 DREMOMETER DXZ 8471-01

RRP: $2,996.68
Your Price:
$2,517.21 (You save $479.47)
SKU:
GE1251341
Availability:
4+ week special order from Germany, Message me about alternates

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

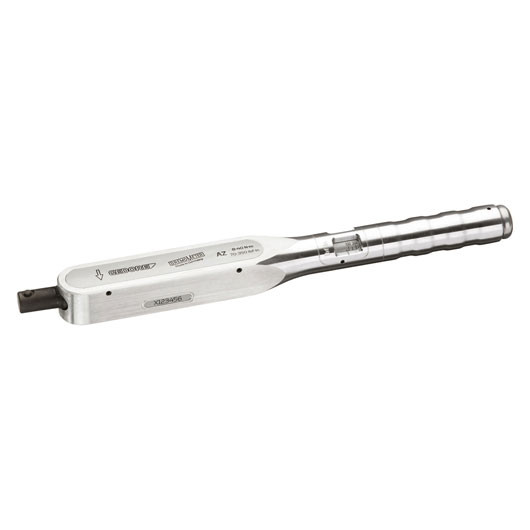

Torque wrench DREMOMETER DXZ 28Z 520-1000 Nm

  • Classified to DIN EN ISO 6789:2003 Type II Class A, with a factory certificate. Working accuracy: +/- 3 % tolerance of scale set torque. The specification of the standard (+/- 4 %) is exceeded.
  • Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient, very workshop-friendly
  • Depending on the application, access is possible from the front (e.g. open-end fitting) or side (e.g. reversible ratchet and socket)
  • Force to be applied in the middle of the handgrip only - do not use an extension tube as otherwise, inaccuracies can evolve (except for model DXZ where the DREMOMETER has been calibrated and adjusted using the extension tube)
  • Operation only with end fittings with standardised depth gauges, otherwise inaccuracies can arise. Keep the depth gauges on the certificate in mind. Only use original GEDORE accessories.
  • Large drive cross-section transfers maximum torques
  • Extremely low wear attributable to reduced forces in the lever mechanism
  • Forged lever chain from our own quality forge
  • Maximum precision even when subjected to extreme continuous use
  • Long life cycles and tool lives
  • Easy operation - fast and safe torque tightening
  • Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
  • With certificate acc. to DIN EN ISO 6789, traceable via in-house DAkkS laboratory to national standards

Specification:

  • Drive Type: DXZ
  • Drive connector pin: 28
  • Range of work/measurement N·m (min/max): 520-1000
  • Range of work/measurement lbf·ft (min/max): 380-730
  • Scale divisions: 10 N·m / 10 lbf·ft
  • Distance middle of handgrip to pivot point: 1.221,0
  • Depth gauge (C,L): 75
  • Width: 45
  • Distance middle of screw to pivot point: 57
  • Distance housing-drive: 17,5
  • Lenght (L,L1): 1319
  • Weight: 5,500
  • Packing Unit (PU): 1
  • Target group: Industry, Renewable Energies, Wind power
  • Item no.: 8471-01
  • Code no.: 1251341
  • EAN: 4002805919903
