Gedore

Gedore 1227459 Quick-release puller, 3-arm pattern 200x150 mm 1.07/2A-E

RRP: $432.57
Your Price:
$363.36 (You save $69.21)
SKU:
GE1227459
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

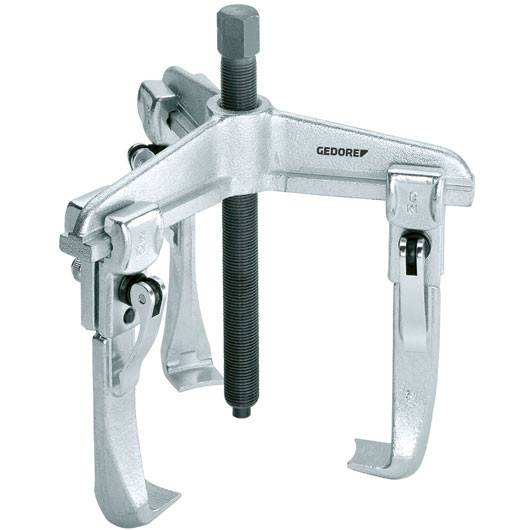

Quick-release puller, 3-arm pattern 200x150 mm

  • Quick release legs for fast, easy set-up and adjustment
  • By reversing the legs, this tool can be used as an internal or external puller
  • Upgradeable with hydraulic spindle (see table)

Specification:

  • Clamping spread-max-external-pulling (a,a1): 200
  • Clamping spread-min-internal-pulling (a2): 100
  • Clamping spread-max-internal-pulling (a2): 260
  • Clamping reach: 150
  • Loading max.t: 5,0
  • Spindle size (Thread x Lenght): G 1/2 x 210
  • Width Across Flat/Actuating Hexagon: 22
  • Hydraulic spindle optional: 1.06/HSP1
  • Width of hooked foot (c): 30
  • Depth of hooked foot (d): 18
  • Thickness of hooked foot at tip (e): 3,5
  • Weight: 4,0
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.07/2A-E
  • Code no.: 1227459
  • EAN: 4036976106435
