Gedore

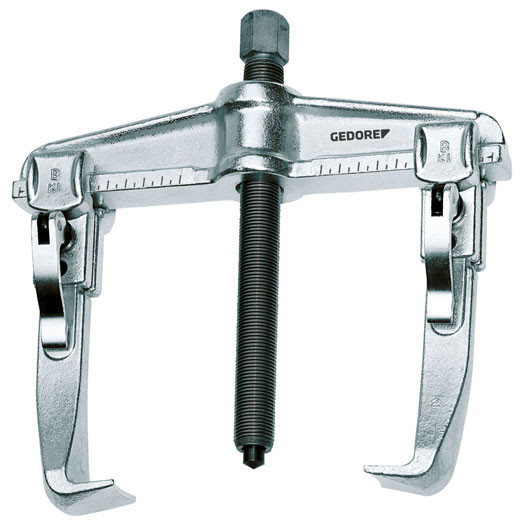

Gedore 1215140 Quick-release puller, 2-arm pattern 130x100 mm 1.06/1A-E

RRP: $165.85
Your Price:
$139.31 (You save $26.54)
SKU:
GE1215140
Availability:
Usually Dropships Within 24 hours from Gedore SC 29418

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.

Quantity:
Pin It



Product Description

Quick-release puller, 2-arm pattern 130x100 mm

  • The tried and tested model for the safe and quick removal of pulleys, wheels, ball bearings, etc.
  • Strong drop forged pattern
  • Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
  • By reversing the legs, this tool can be used as an internal or external puller
  • Exchangeable legs for several clamping reaches available as accessories
  • Quick release legs for fast, easy set-up and adjustment
  • Upgradeable with hydraulic spindle (see table)

Specification:

  • Clamping spread-max-external-pulling (a,a1): 130
  • Clamping spread-min-internal-pulling (a2): 70
  • Clamping spread-max-internal-pulling (a2): 180
  • Clamping reach: 100
  • Loading max.t: 3,0
  • Spindle size (Thread x Lenght): M 14x1,5 x 140
  • Width Across Flat/Actuating Hexagon: 17
  • Width of hooked foot (c): 22
  • Depth of hooked foot (d): 12
  • Thickness of hooked foot at tip (e): 3,0
  • Scale divisions: X
  • Weight: 1,3
  • Packing Unit (PU): 1
  • Target group: Industry
  • Item no.: 1.06/1A-E
  • Code no.: 1215140
  • EAN: 4036976106268
