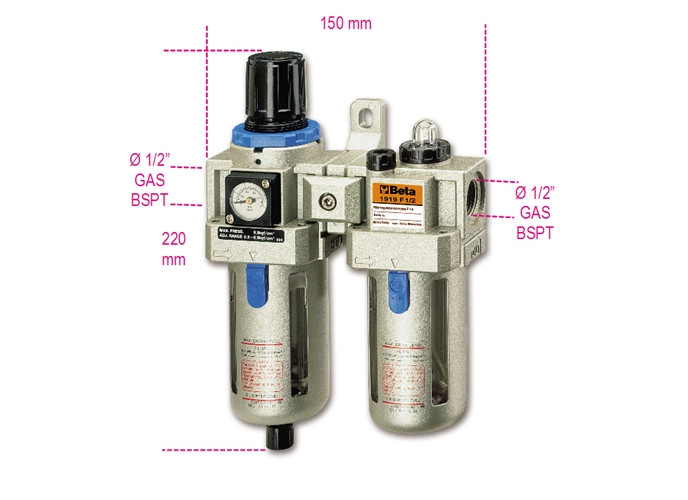

1919 F1/2-FILTER-REGULATOR-LUBRICATOR
Features
- Modular units composed of one condensate separator-filter and one lubricator
- The unit comprises the following: pressure regulator with locking device, air/oil micro-fog mixer with intensity regulator, polycarbonate cups with semiautomatic water exhaust valve, double graduated (bars-psi) analogue pressure gauge, fixing support
- Air in/outlet 1/2 GAS BSPT
- Maximum air capacity 2500 l/min
- Maximum pressure 9.5 bars
- Operating pressure 0.5 - 8.5 bars
- Operating temperature 5 - 60 °C
- Filter capacity 5 microns
- Country of origin: Taiwan
