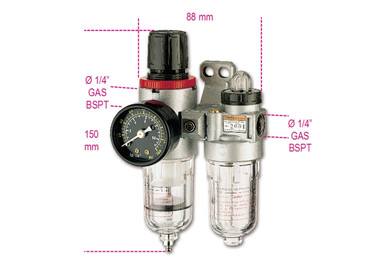

1919 FE1/4-FILTER-REGULATOR-LUBRICATOR
Features
- Modular unit composed of one condensate separator-filter and one lubricator
- The unit comprises the following: pressure regulator with locking device, air/oil micro-fog mixer with intensity regulator, polycarbonate cups with semiautomatic water exhaust valve, double graduated (bars-psi) analogue pressure gauge, fixing support
- Air in/outlet 1/4 GAS BSPT
- Pressure gauge inlet 1/8 GAS BSPT
- Maximum air capacity 750 l/min
- Maximum pressure 9.5 bars
- Operating pressure 0.5 - 8.5 bars
- Operating temperature 5 - 60 °C
- Country of origin: Taiwan
