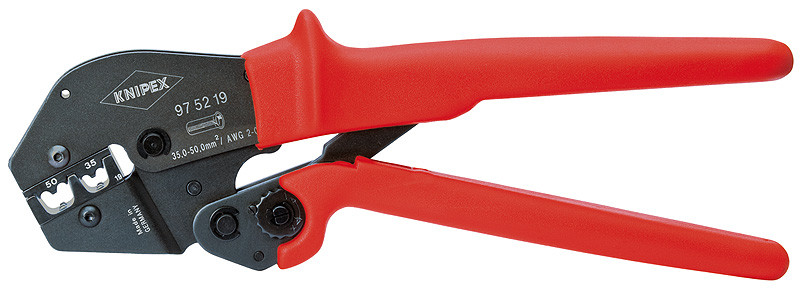

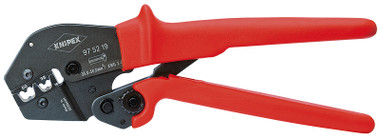

97 Series Lever Action Crimping Pliers
With the new generation of Crimping Pliers even large conductor cross sections that normally require a high handforce can be crimped easily. The new lever transmission reduces the necessary handforce up to 30% compared with regular crimping pliers.
- New generation of lever action crimping pliers
- For solder-free electrical connections
- The new lever transmission reduces the handforce up to 30% compared with regular crimping pliers
- Repetitive, high crimping quality due to precision dies and integral lock (self-releasing mechanism)
- These tools have been set precisely (calibrated) in the factory
- Two-hand operation for easy crimping of large conductor diameters
- Easy handling as a result of well balanced center of gravity, angled head and ergnomically shaped handles
- All stressed parts are made of special steel, oil-hardened and tempered
- Head burnished, non-slip plastic coated handles
| | No. | 97 52 19 |
| | EAN | 4003773052142 |
| | Pliers | burnished |
| | Handles | with non-slip plastic grips |
| | Applications | insulated and non-insulated end sleeves (ferrules) |
| | Capacity | 35 - 50 mm² |
| | AWG | 2 + 0 |
| | Number of crimping positions | 2 |
| | Length | 250 mm |
| | Net weight | 567 g |
