96502110 Stahlwille 730NR/10QR FK 20-100Nm Torque

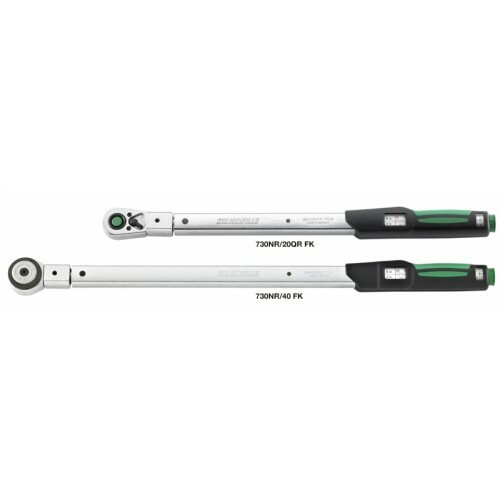

730NR - Service MANOSKOP® torque wrenches with permanently installed QuickRelease ratchet

Service MANOSKOP® 730N

Clicking torque wrench with mount for interchangeable insert tools, rapid, accurate setting using QuickSelect quick-action adjuster, with QuickRelease safety lock, double stop signals, very clear twin scales with colour coded N m/ft.lb and ft.lb/inch.lb markings and long-term repeated accuracy. The measuring element is only under load while force is being applied, no need for manual reset to zero. All the sensitive components are protected by the sturdy housing. The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluids and Skydrol. Any force applied to the tool after the "click" or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it. The swap-over inserts can also be used to apply torque in an anticlockwise direction. Easily adjustable without disassembly, e.g. using tester No 7707 W. Guaranteed maximum accuracy deviation ± 3 %. With certificate.

In sturdy plastic case (size 65 in steel case)
Ratchet has QuickRelease safety lock
QuickRelease Deviation of indication ± 4%.

technical data
