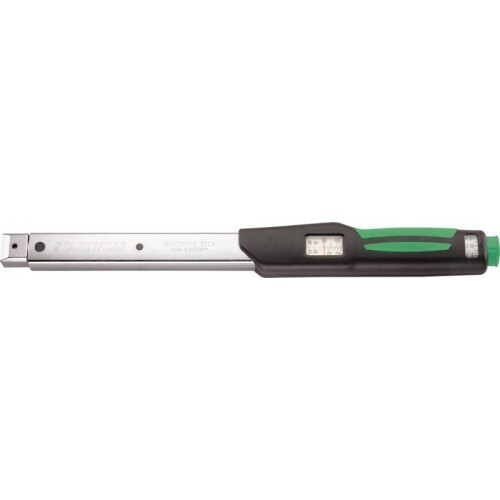

50581040 Stahlwille 730Na/40 TorqueWrench 60-300Ft

730N - Service MANOSKOP® torque wrenches with mount for insert tools

Service MANOSKOP® 730N

• click-type
• mount for interchangeable insert tools
• QuickRelease safety lock
• fast, accurate setting thanks to QuickSelect quick-action adjuster
• dual stop signal
• easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales
• the measuring element is only under load while force is being applied, no need for manual reset to zero
• can be applied for either clockwise or anticlockwise tightening by turning the inserts over
• any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
• two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)
• calibration using perfectControl calibrating unit
  No 7794 or calibration system No 7706.
  Adjustment without disassembly.
• with certificate
• registered design
• display deviation value ± 3%

technical data

Code	50581040
EAN code	4018754164004
EClass 5.1	21040222
Size	a/40
Scale Range	60-300 ft·lb
Scale Range	800-3600 in·lb
Scale Division	20 ft·lb
Scale Division	100 in·lb
Fine scale Scale Division	2 ft·lb
Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square) mm
b mm	28
h mm	23
L mm	607
LF mm	564,5
SF mm	25
Weight g	1655
