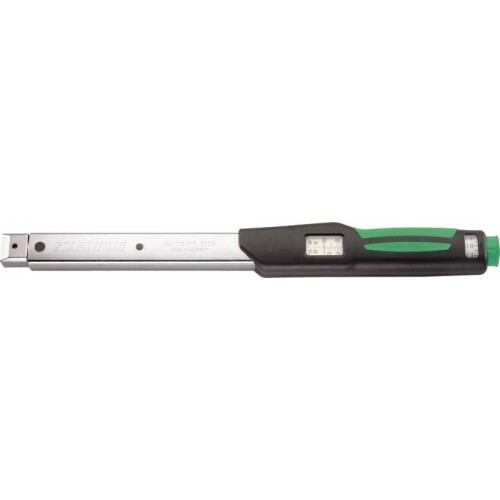

50181020 Stahlwille SF730N/20 Torque Wrench 40-200Nm

RRP: $822.00
Your Price:
$698.70 (You save $123.30)
SKU:
SW50181020
Availability:
Y

Earns cash back rewards!

115% Price Protection Guarantee!

NO Sales Tax.



Product Description

730N - Service MANOSKOP® torque wrenches with mount for insert tools

Service MANOSKOP® 730N

  • Click-type
  • Mount for interchangeable insert tools
  • QuickRelease safety lock
  • Fast, accurate setting thanks to QuickSelect quick-action adjuster
  • Dual stop signal
  • Easy-to-read double scale with colour coding to differentiate between N·m/ft·lb and ft·lb/in·lb scales
  • The measuring element is only under load while force is being applied, no need for manual reset to zero
  • Can be applied for either clockwise or anticlockwise tightening by turning the inserts over
  • Any force applied to the tool after the 'click' or applied in the opposite direction to the current function - e.g. forcible loosening of a jammed screw - does not act on the trigger mechanism and cannot cause damage to it.
  • Two-component handle with ergonomically designed green softer layers (resistant to oils, grease, fuels, brake fluids and Skydrol)
  • Calibration using perfectControl calibrating unit
  • No 7794 or calibration system No 7706.
  • Adjustment without disassembly.
  • With certificate
  • Registered design
  • Display deviation value ± 3%

technical data

Code 50181020
EAN code 4018754139545
EClass 5.1 21040222
Size 20
Scale Range 40-200 N·m
Scale Range 30-150 ft·lb
Scale Division 10 N·m
Scale Division 5 ft·lb
Fine scale Scale Division 1 N·m
Size of Insert Tool Carrier in mm (MANOSKOP) (Inside Square) mm
b mm 28
h mm 23
L mm 467
LF mm 424,5
SF mm 25
Weight g 1264
