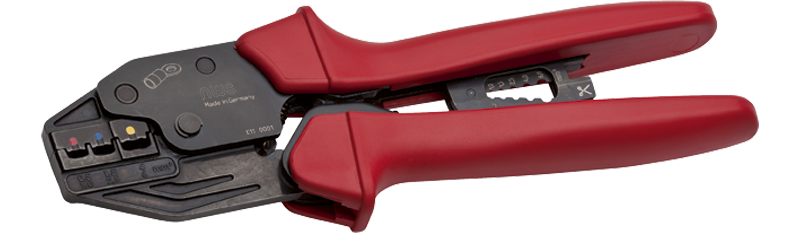

NWS 550-225 Crimp Lever Pliers

Crimping Lever Pliers for Terminals

• Inclusive stripping and cutting system Clip & Strip
• For establishing solderless, electrical connections according to DIN
• For processing insulated crimp sleeves and plug connectors
• High precision due to special profile geometry with profile identification
• Integrated, releasable restraint lock for controlled pressing in one operation
• With optimum leverage for easy and effortless work
• Ergonomically shaped soft handles with slip guard
• Made of special steel, high-strength parts that are especially subject to wear and tear are additionally hardened and tempered

Technical Data

• SKU: 550-225
• Ean Code: 40 03758 55000 7
• Length in millimetres: 225
• Length in inches: 8 3/4
• Type pressing
• Minimum pressing in AWG: 20
• Maximum pressing in AWG: 10
• Minimum pressing in square millimetres: 0,5
• Maximum pressing in square millimetres: 6
• Number of profiles: 3
• Profile 1 in square millimetres: 0,5 - 1,0
• Profile 2 in square millimetres: 1,5 - 2,5
• Profile 3 in square millimetres: 4,0 - 6,0
• With opening spring
• Weight in Grams: 515
